14mm Narrow Gauge Inset/Tram and plain track





These track panels are designed to fit Peco code 100 rail.
recommended for indoor use only, as plastic is not fully water proof

Link to



          >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>  back to Track Menu page

Description Template
Small stone version

Suitable for 3ft 6in narrow gauge in 1/76 scale or 4ft gauge in 1/87 scale

For templates geometry same as for 16.5mm gauge versions

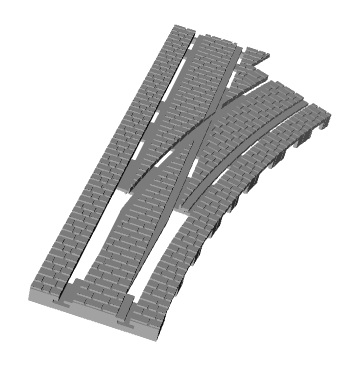

Right hand Tram point radius 250mm

Pair of these create crossover matching 250/204 radius curves


Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 3ft 6in gauge in 1/76 (4mm/ft) scale, or 4ft gauge in 1/87(3.5mm/ft) scale

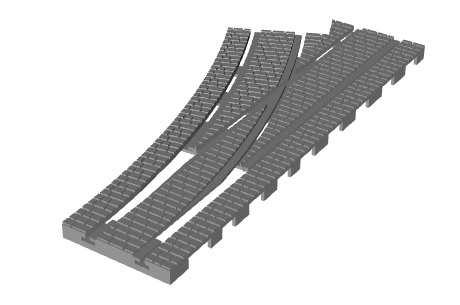

Left hand Tram point radius 250mm



Pair of these create crossover matching 250/204 radius curves


Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 3ft 6in gauge in 1/76 (4mm/ft) scale, or 4ft gauge in 1/87(3.5mm/ft) scale

Curve 30 degrees 250mm radius

Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 3ft 6in gauge in 1/76 (4mm/ft) scale, or 4ft gauge in 1/87(3.5mm/ft) scale

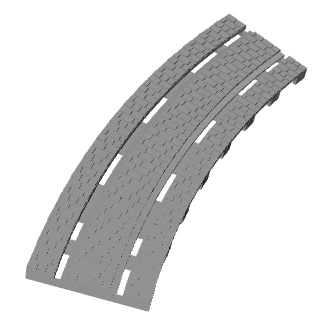

Curve 30 degrees 204mm radius


Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 3ft 6in gauge in 1/76 (4mm/ft) scale, or 4ft gauge in 1/87(3.5mm/ft) scale

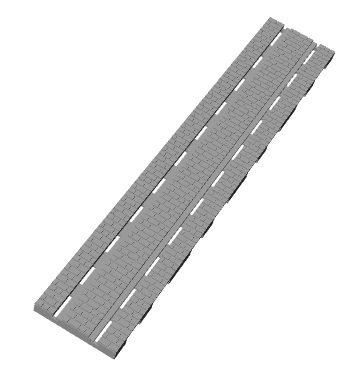

Straight 168mm long

Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 3ft 6in gauge in 1/76 (4mm/ft) scale, or 4ft gauge in 1/87(3.5mm/ft) scale

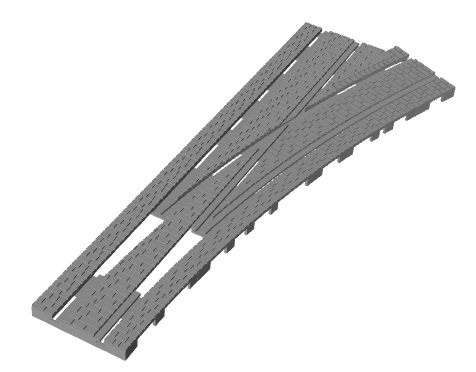

Right hand point R2 radius(438mm)

 Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 3ft 6in gauge in 1/76 (4mm/ft) scale, or 4ft gauge in 1/87(3.5mm/ft) scale
Left hand point R2 radius (438mm)

Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 3ft 6in gauge in 1/76 (4mm/ft) scale, or 4ft gauge in 1/87(3.5mm/ft) scale
Curve 22.5 degrees R2 radius (438mm)


Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 3ft 6in gauge in 1/76 (4mm/ft) scale, or 4ft gauge in 1/87(3.5mm/ft) scale
Flexi track section, 48 sections, approximately 300mm total length

Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 3ft 6in gauge in 1/76 (4mm/ft) scale, or 4ft gauge in 1/87(3.5mm/ft) scale

Large stone version

suitable for 2ft narrow gauge on 14mm gauge, such as O14

For templates geometry same as for 16.5mm gauge versions
Straight 168mm long



Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 2ft gauge in O scale

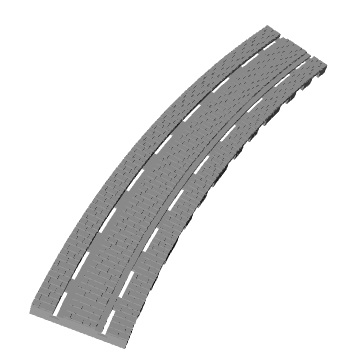

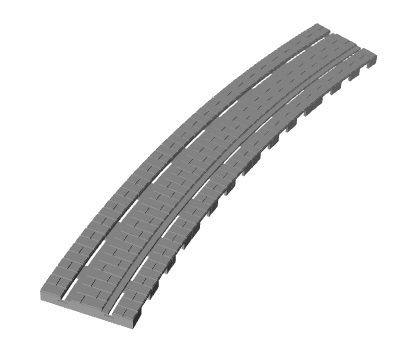

Curve 22.5 degrees R2 radius (438mm)



Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 2ft gauge in O scale

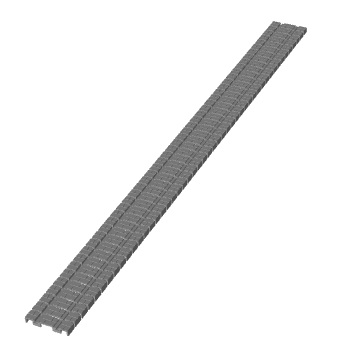

Flexi track section, 48 sections, approximately 300mm total length


Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 2ft gauge in O scale

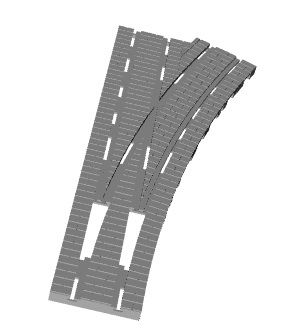

Right hand point R2 radius(438mm)




Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 2ft gauge in O scale

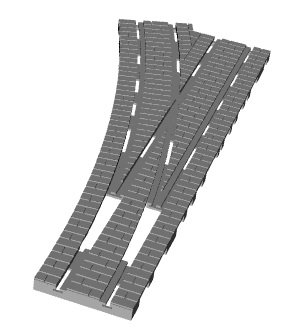

Left hand point R2 radius (438mm)




Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 2ft gauge in O scale
Plain track bases  for non inset track

 Ideal for 3ft 6in gauge in 1/76 (4mm/ft) scale, or 4ft gauge in 1/87(3.5mm/ft) scale

Left hand point R2 radius (438mm)




Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 2ft gauge in O scale
Right hand point R2 radius(438mm)




Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 2ft gauge in O scale
Straight 168mm long

Fit code 100 rail to create inset/tram track to 14mm gauge. Ideal for 2ft gauge in O scale
Curve 22.5 degrees R2 radius (438mm)



Fit code 100 rail to create plain track to 14mm gauge. Ideal for 2ft gauge in O scale
