32mm Gauge Small Turntables

Pseudo well type turntables which can be turned through 180 degrees, using control wires . No hole required to be cut in baseboard

These track panels are designed to fit Peco code 100 rail.
recommended for indoor use only, as plastic is not fully water proof

Link to :

          Mixed gauge 32mm/16.5mm gauges

       32mm gauge track

       32mm gauge wagon turntables

      >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>  back to Track Menu page

Description Template

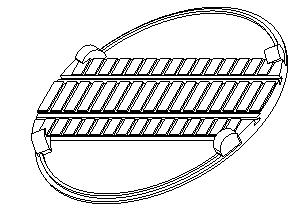

T-32-small-turntable-168d-100-flat-1a

Taking the wagon turntable a stage further to create what looks like a typical
turntable with pit. The pit is flat, the whole unit is same thickness as standard
track, so needs no ho;e cut in baseboard. Could be used on its own, but it fits in new
180 degrees turntable bases which raise it by 3.5mm, and can then be operated
remotely.

This version is wood topped 168mm diameter 16.5mm gauge . Fit code 100 rail

Print off template

T-32-small-turntable-168d-100-wood-1a



Taking the wagon turntable a stage further to create what looks like a typical turntable with pit. The pit is flat, the whole unit is same thickness as standard track, so needs no hole cut in baseboard. Could be used on its own, but it fits in new 180 degrees turntable bases which raise it by 3.5mm, and can then be operated remotely.

This version is wood topped 168mm diameter 32mm gauge . Fit code 100 rail
Print off template

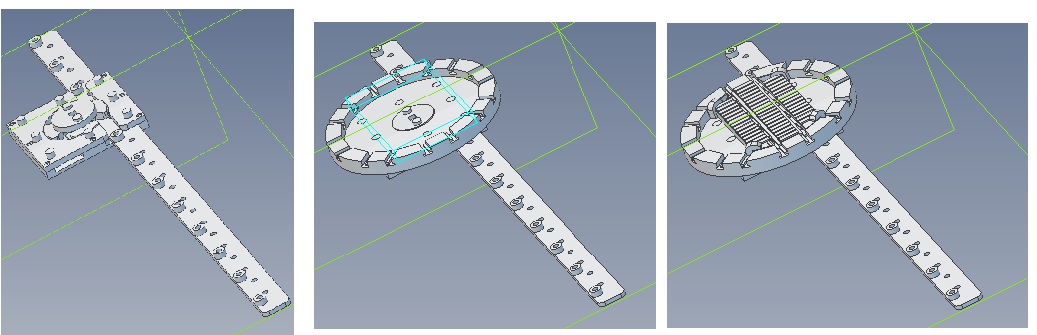

T-32-small-turntable-168d-100-plus-base-1a



A variation on the wagon turntable design, which wwould only turn through 90 degrees.To turn through 180 degrees, a simple suport arm has replaced the control arm. Piano wire or similar will need to be connected to push/pull the turntable around.

Connecting up wiring will require a reverse polarity switch or similar
