3D Printed narrow gauge rolling stock
Started with 1/35th scale WW1 locos and wagons, and on request these designs
have been re-sized to other scales from Z to SM32
---------------------------------------------------------
All 3D printed designs by Simon Dawson (Rue d'Étropal) ,
currently produced to order by Shapeways. Just follow links to Shapeways pages.
===============================
Link
to:
3D printed narrow gauge locomotives
3D printed
standard gauge trains
3D printed broad
gauge locomotives
3D
printed Irish 5ft 3in Broad Gauge
3D printed track and accessories
>>>>>>>>>>>>>>>>>>>>>>
back to 3D Printing Menu
Pictures are just for reference, not of specific
scaled model.
Some bogie wagons require bogies, some are
included. Check specific wagon for requirements.
 |
Description |
Model Scales |
Wagons
(60 cm gauge)
|
|
|

|

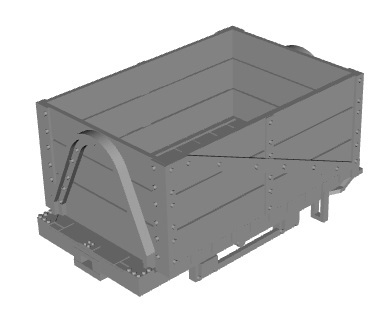

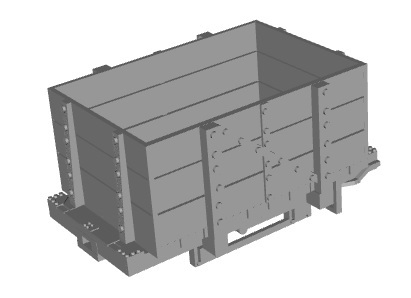

WDLR A type open wagon
(60cm gauge)
One of the first designs used by the British in WW1 |

 |

|
WDLR A type open wagon
(60cm gauge)
|


 |

|

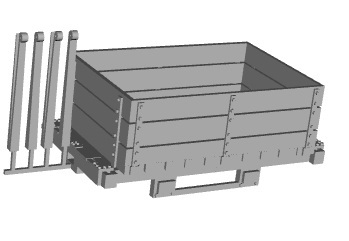

WDLR A type open wagon, folding ends and sides
stanchions only included in some scales.
(60cm gauge)
|

 |

|

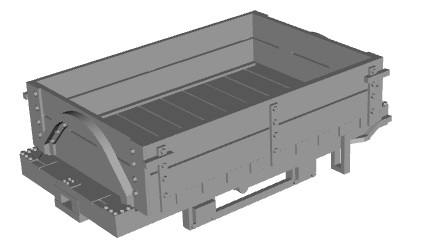

WDLR A type open wagon, folding sides
(60cm gauge)
|

 |

|
WDLR B type open wagon
(60cm gauge)
The bigger version of the A wagons
|


 |

|

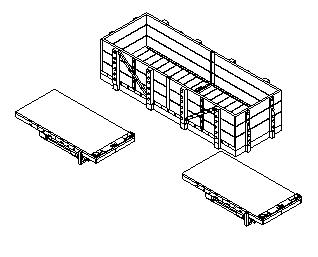

WDLR C type open wagon
(60cm gauge)
Bogied version of the A wagon
|
 |
|
WDLR C wagon bogie |

 |

|
WDLR D wagon bogies
(60cm gauge)
|
 |

|

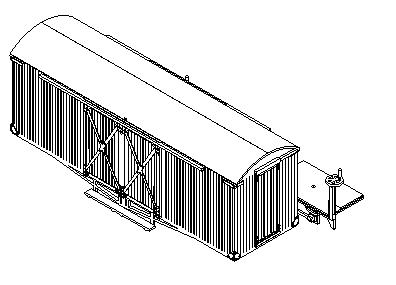

WDLR D type bogie van(ambulance) wagon
(60cm gauge)
originally designed for ambulance service, but not as suited as open
wagons, so more often used for freight after WW1
|
 |

|
WDLR D type open wagon, type1
(60cm gauge)
one version of the later bogie open wagons
|
 |

|

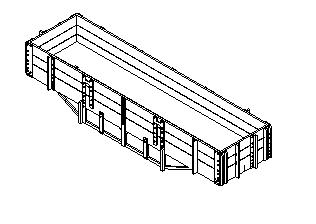

WDLR D type open wagon, type 2
(60cm gauge)
second version of bogie open wagon
|
 |

|

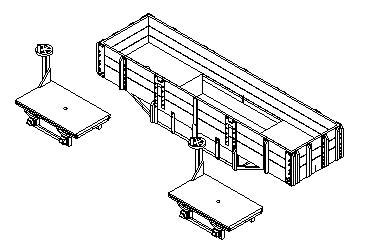

WDLR E type open wagon
(60cm gauge)
bogie wagon with dropped centre section for larger loads
|
 |

|

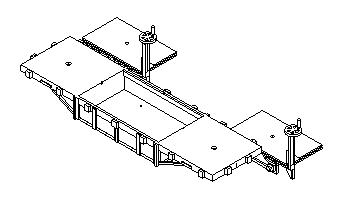

WDLR F type open wagon
(60cm gauge)
Flat version of E wagon
|
 |

|

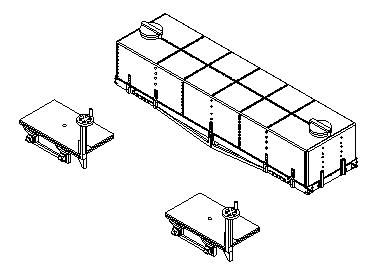

WDLR H type tanker wagon
(60cm gauge)
Water was an important commodity for troops and animals in WW1, as well as steam locos, so special wagons were built to transport water. Designated H wagons. Found use in Industry after the war. |
 |

|

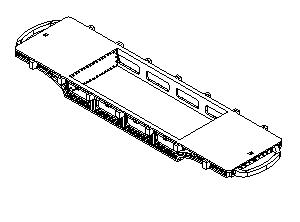

Pechot bogie wagon
(60cm gauge)
Classic French WW1 bogie wagon, used in various versions |
 |

|
Pechot wagon bogies
(60cm gauge)
used individually and under wagons |
 |
RAF Calshot narrow gauge railway wagons
Started as a contractor's railway, it evolved into an integrated part of the transport system of the
operational RAF Station.
To convey goods and RAF personnel , wagons similar to those built for the WDLR in WW1 were used. Open wagons for goods, a covered wagon with central seat for personnel, and a modified covered wagon for officers.
The railway operated until end of WW2 when it was found that wagons were no longer safe to use. One of the locos is preserved on the Talyllyn Railway. |
|
 |

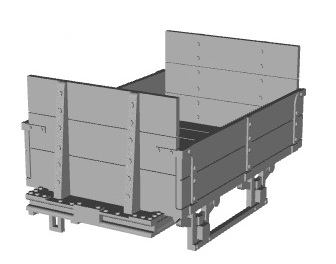

RAF Calshot
Open Wagon
|
|
 |

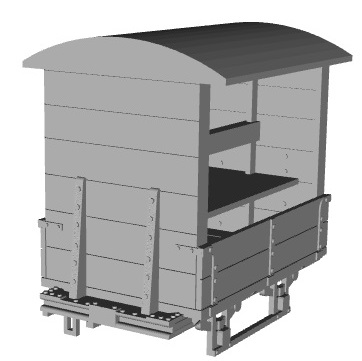

RAF Calshot
Covered wagon/coach
|
|
 |

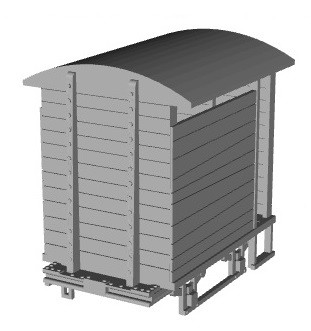

RAF Calshot
Officer wagon
|
|
======================================
Direct links to lists for each scale below
====================================================
Currently adding links to all my designs, all other designs
please go to my Shapeways
e-shop.
