Board join track sections

Taking track across board joins can be difficult. Traditional method is to solder rails to paxolin strip, but this can get damaged. Also metal rail will expand and contract in different room temperatures.

Using small sections of 3D printed track, with simulated sleepers provides a very strong alternative. Sections can be fixed to baseboards using normal track pins.

Track on each board must have power supplied, and the short lengths of rail require wires attached to provide power to them. If the other rail expands or contracts, new rails should be used to connect them.

For simple straight track basic short sections are OK, but for track angled across join, longer sections can be put across join, and cut to correct angle.

For dockyard/tramway inset track, the 3d printed inset track can be used in same way.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>  back to Track Menu page

Description

X-165-b2b-track-joiner-1a

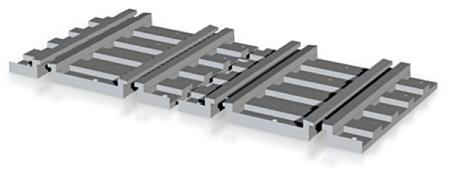

basic sections for OO/HO straight track at right angles to board ends



X-165-b2b-long-track-joiner-1a


longer straight which can be used across baseboard join at angle and then cut to suit.
designed for code 100 rail, OO or HO gauge



X-165-b2b-long-curved-r2-track-joiner-1a

R2 curved version to go across baseboard joins at an angle


X-165ng-b2b-track-joiner-1a

16.5mm gauge narrow gauge On30 O16.5. basic version of joiner for straight track at right angles to board end


X-165ng-b2b-long-track-joiner-1a

longer straight which can be used across baseboard join at angle and then cut to suit.


X-32-b2b-track-joiner-1a

32mm gauge O gauge. basic version of joiner for straight track at right angles to board end


X-32-b2b-long-track-joiner-1a

longer straight which can be used across baseboard join at angle and then cut to suit.


X-16-5-gn15-b2b-track-joiner-1a

Gn15 16.5mm guge. basic version of joiner for straight track at right angles to board end



X-16-5-gn15-b2b-long-track-joiner-1a

section with gn15 sized sleepers to cross board joins at any angle. just cut to suit,
with one section on each board

fits code 100 rail
