Bridge rail and girder bridges

pieces to build simple bridges and complete bridge units


recommended for indoor use only, as plastic is not fully water proof

Link to :

                   >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>  back to Track Menu page

Description Template

R-165-straight-bridgetrack-long-plus-1a

straight open girder bridge for 16.5mm gauge. fit code 100 rail

Print off template



R-165-curve-250-bridge-track-long-plus-1a

basic open girder bridge 250mm radius, 30 degree angle. uses code 100 rail
Print off template
R-165-curve-2r-bridge-track-long-plus-1a

r2 radius open girder bridge, 22.5 deg. use code 100 rail
Print off template
R-165-curve-2r-bridge-track-long-plus2-1a

second version of 2r radius open girder bridge with fewer cross beams, 22.5deg. use code 100 rail
Print off template
R-165-curve-2r-bridge-track-long-plus-walkway-sp-2

r2 radius open girder bridge with fancy handrail. fit code 100 rail
Print off template
R-165-curve-Y-bridge-track-long-plus-walkway-sp-2a


Y curve open girder bridge with fancy handrails. use code 100 rail
Print off template

R-9-straight-bridge-track-long-1a

9mm gauge long open girder bridge. use code 100 rail
Print off template

R-9-curve-bridge-track-long-2a

short open girder bridge for 9mm gauge track. use code 100 rail.
Print off template

R-9-curve-bridge-track-extra-long-2a

30deg curved open girder bridge for 9mm gauge. 9in radius. uses code 100 rail
Print off template

Dapol(ex Airfix) bridge with bridge rails added

R-165-girder-bridge-rails-100-1a-x4

pack of 4 bridge rail bases to fit Dapol/Airfix girder bridge.Should clip in place. Fit code 100 rail.

R-165-straight-bridge-rail-long-100-1a-x4

pack of 4 bridge rail supporting sections, each 168mm long. fit code 100 rail. Just drill a 2 lines of 2mm diameter holes, 21mm apart, each line the track gauge required, ie 16.5mm apart for OO/HO track.

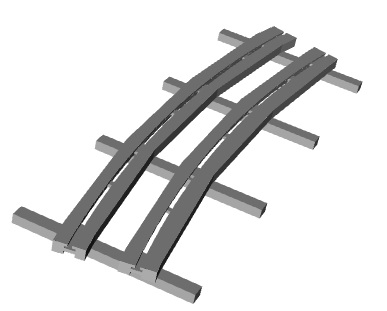

Basic 1st radius bridge section.

 basic bridge section, 1st radius curve, 16.5mm gauge. fit code 100 rail. Ideal for light weight narrow gauge railways, just add supports and sides.

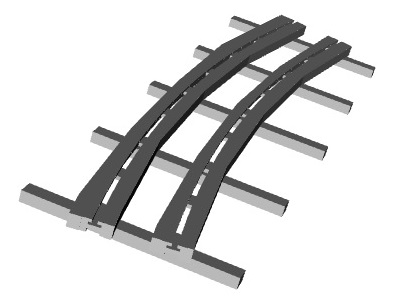

Basic 2nd radius bridge section.

basic bridge section, 2nd radius curve, 16.5mm gauge. fit code 100 rail. Ideal for light weight narrow gauge railways, just add supports and sides.
