Gn15 Track - 16.5mm gauge

Suitable for larger scale narrow gauge on 16.5mm gauge, such as Gn15 or 1/12th scale

These track panels are designed to fit Peco code 100 rail.
recommended for indoor use only, as plastic is not fully water proof

Link to

          Gn15 wagon turntables

          Gn15 large stone 10cm radius track

      Gn15 Sleepered Track

      Gn15 Board Joining Track

     >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>  back to Track Menu page

Inlays for Peco points (including bases)


  Description Template
P-165stg-inset-lh-point-g-1a

Very large stone version of tramway insert for standard Peco Setract OO/HO left hand point.
Ideal for larger narrow gauge scales such as Gn15

Print off template
P-165stg-inset-rh-point-g-1a

Very large stone version of tramway insert for standard Peco Setrack OO/HO right hand point.
Ideal for larger narrow gauge scales such as Gn15
Print off template
P-165stg-peco-inset-small-lh-plus-base-1a

giant stoned version of 'wrap around' inlay for Peco small radius OO/HO point,left hand.. suits Gn15
Print off template

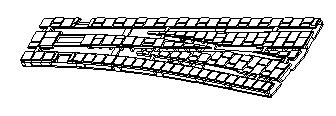

P-165stg-peco-inset-small-rh-plus-base-1a

giant stoned version of 'wrap around' inlay for Peco small radius OO/HO point, right hand.. suits Gn15

Print off template

Complete track sections for code 100 rail

  Description Template

P-165stg-lh-point-100r-100-live-1a

10cm radius left hand point with giant stone surface. Fits code 100 rail, suitable for Gn15

Print off template




P-165stg-rh-point-100r-100-live-1a

10cm radius right hand point(45 degree angle), with giant stone surface. Fits code 100 rail, suitable for Gn15

Print off template
P-165stg-long-curve-100r-100-1a

10cm radius 90 degree curve with giant stone surface. Fits code 100 rail, suitable for Gn15

Print off template
P-165stg-short-curve-100r-100-1a

short curve, 10cm radius with giant stone surface. Fits code 100 rail. Ideal for Gn15

Print off template
P-165stg-left-point-100-live-big-9a

bigger stone surface of standard left hand point, geometry matches Peco R2 points.Suit bigger narrow gauge such as Gn15


Print off template
P-165stg-right-point-100-live-big-9a


bigger stone surface of standard right hand point, geometry matches Peco R2
points.Suit bigger narrow gauge such as Gn15


Print off template
P-165stg-long-straight-tram-track-100-big-6a

standard straight length with very big stone surface for larger narrow gauge eg Gn15

Print off template
P-165stg-long-curved-r2-tram-track-100-big-6a

radius 2 standard curve(22,5 deg) with very big stone surface, suit larger scale
narrow gauge eg Gn15

Print off template
P-165stg-flexi-tram-track-100-x48-1a

48 pieces of small stone section top make flexi inset track 16.5mm gauge with giant stones for narrow gauge(eg Gn15). fit code 100 rail.

Each section is 7mm long.


P-165stg-flexi-tram-track-100-x24-1a

24 pieces of small stone section top make flexi inset track 16.5mm gauge with giant stones for narrow gauge(eg Gn15). fit code 100 rail.

Each section is 7mm long.




Wedges to go between tracks


P-165stg-left-inside-wedge-big-1a

inside wedge for either left hand R2 curve or point, with very big stone surface, suits larger narrow gauge scales such as Gn15


P-165stg-left-outside-wedge-big-1a

outer wedge for left hand r2 curve, with very big stone surfave ideal for larger narrow gauge scales such as Gn15


P-165stg-right-inside-wedge-big-1a

inner wedge to fit either right hand r2 curve or point, very big stone surface suitable for larger narrow gauge scales such as gn15


P-165stg-right-outside-wedge-big-1a

wedge to fit outside right hand standard curve to match right hand point. Very big stone to suit larger scale narrow gauge such as Gn15


P-165stg-straight-long-wedge-1a

straight wedge piece to fit between parallel track, very big stone surface suits larger narrow gauge such as Gn15
