Big Scale  Track - 32mm gauge ,45mm gauge

These track panels are designed to fit Peco code 200 rail.
recommended for indoor use only, as plastic is not fully water proof



collection of inset track panels which take flat bottom code 200 rail(eg Peco).

Extra large stone surface representation, suitable foe for1/12th scale or 7/8th in/ft scale .



32mm gauge based on Faller E Train geometry with curve radius of 360mm. 45mm gauge curves are 353.5mm radius based on outer rail being same as 32mm gauge curve, for all curves except one with 32mm gauge on inside, resulting in 45mm gauge being 366.5mm radius.





      >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>  back to Track Menu page

Description Template
points

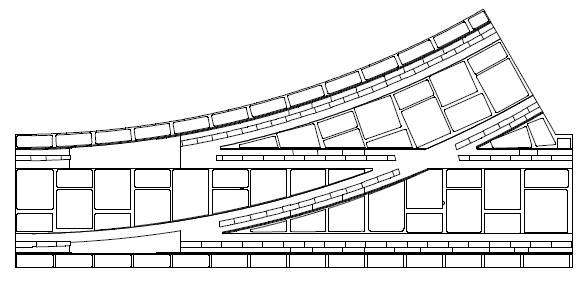

p-32xb-tram-lh-point-200-1a

32mm gauge, left hand point, 360mm radius, 30degree angle



Print off template

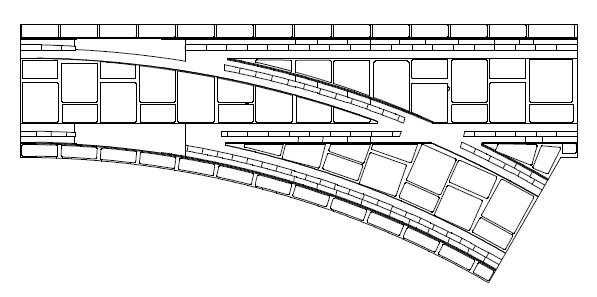

p-32xb-tram-rh-point-200-1a

32mm gauge, left hand point, 360mm radius, 30degree angle







Print off template

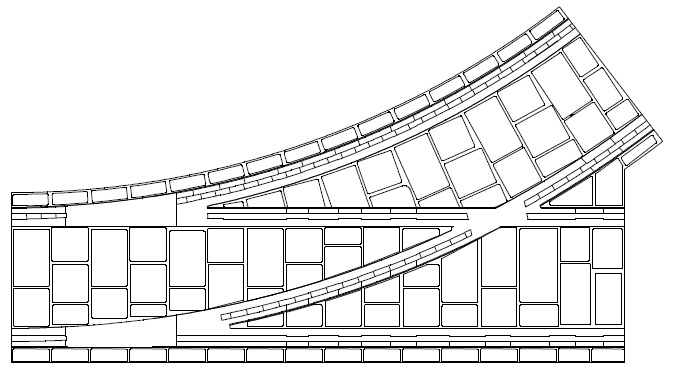

p-45xb-tram-lh-point-200-1a

45mm gauge, left hand point, 353.5mm radius, 37.5degree angle

Print off template

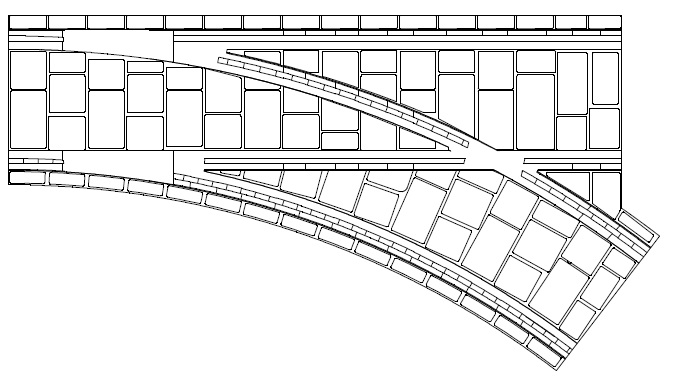

p-45xb-tram-rh-point-200-1a

45mm gauge, right hand point, 353.5mm radius, 37.5degree angle

Print off template
interlaced points

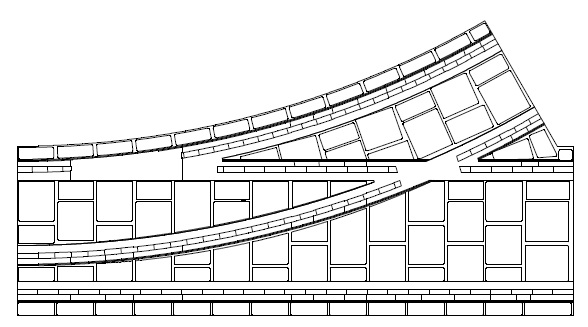

p-32-45xb-tram-lh-point-200-1a

left hand 32mm gauge curved curve interlaced with 45mm gauge straight  track

Print off template

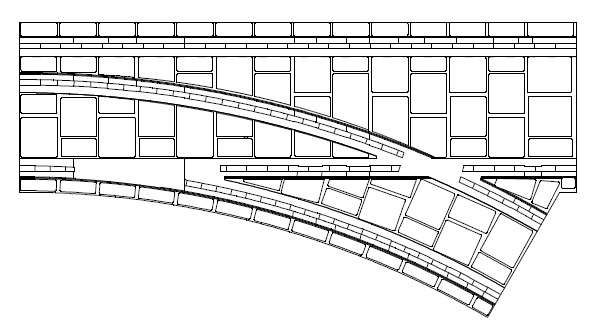

p-32-45xb-tram-rh-point-200-1a

right hand 32mm gauge curved curve interlaced with 45mm gauge straight  track

Print off template

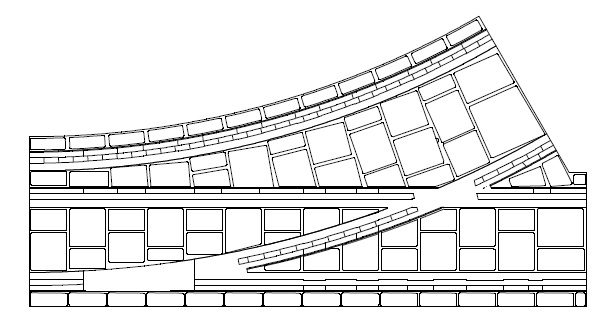

p-45-32xb-tram-lh-point-200-1a

right hand 45mm gauge curved curve interlaced with 32mm gauge straight  track



Print off template

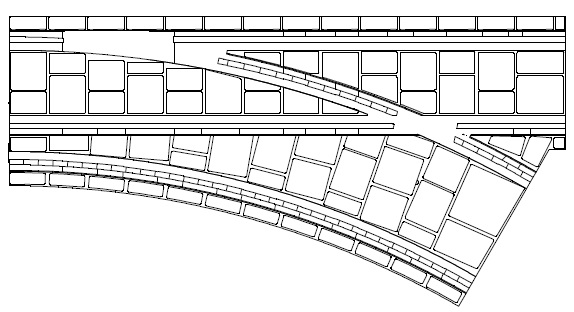

p-45-32xb-tram-rh-point-200-1a

right hand 45mm gauge curved curve interlaced with 32mm gauge straight  track



Print off template
exchange points

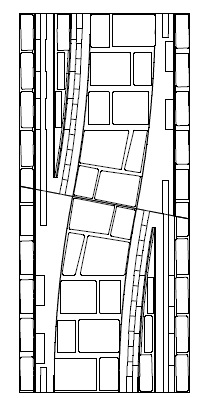

p-32-45xb-exchange-l2r-point-1a

exchange point taking 32mm gauge from left to right side of 45mm gauge



Print off template

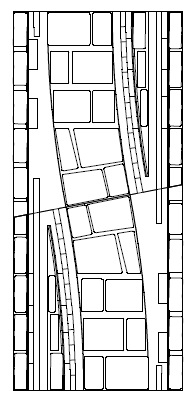

p-32-45xb-exchange-r2l-point-1a

exchange point taking 32mm gauge from left to right side of 45mm gauge



Print off template
curves

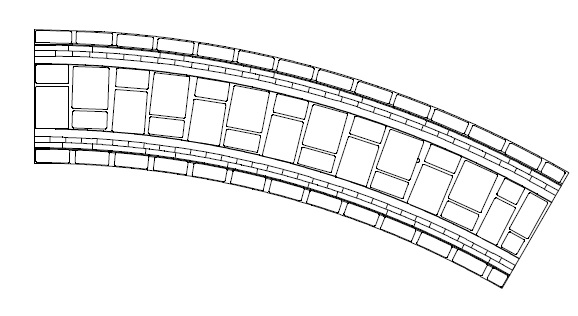

p-32xb-tram-curve-200-360r-1a

32mm gauge curve,360mm radius, angle 30 degrees
Print off template

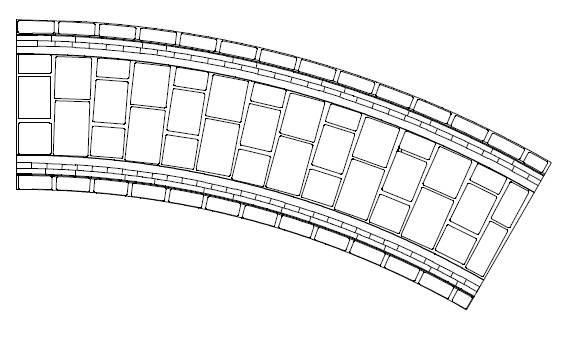

p-45xb-tram-curve-200-353-5r-1a

45mm gauge curve, 353.5mm radius, angle 30 degrees
Print off template

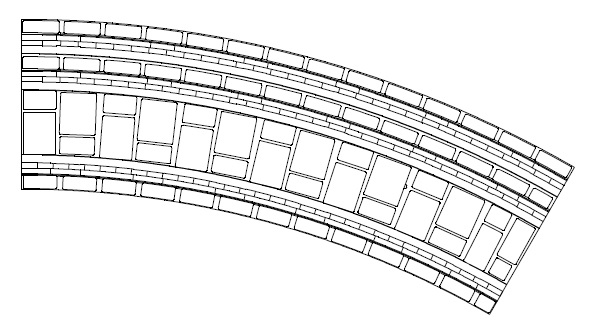

p-32-45xb-tram-curve-200-360r-1a

mixed gauge with 32mm gauge on inside edge. radius of 32mm gauge is 360mm, 45mm gauge is 366.5mm radius,, angle 30 degrees

Print off template

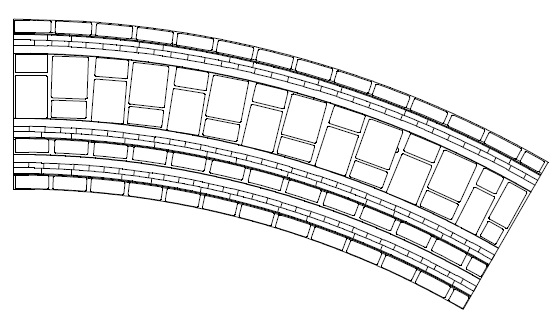

p-45-32xb-tram-curve-200-360r-1a



mixed gauge with 32mm gauge on outside edge. radius of 32mm gauge is 360mm, 45mm gauge is 353.5mm radius, angle 30 degrees

Print off template
straights

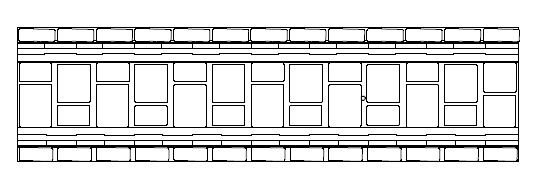

p-32xb-tram-straight-180-200-1a

32mm gauge straight 180mm long

Print off template
/

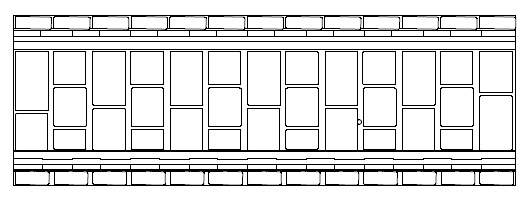

p-45xb-tram-straight-180-200-1a

45mm gauge straight 180mm long
Print off template

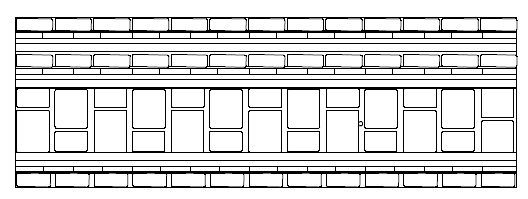

p-32-45xb-tram-straight-180-200-1a

32mm 45mm mixed gauge straight 180mm long

Print off template
