3D Printed BR Southern Region DEMUs
The Southern Region introduced DEMUs in the 1950s and 60s to replace steam hauled trains on lines which were not electrified. The best known are the narrow bodies Hastings 6 car units which were built with either 58ft or 64ft long bodies.
The Class 201 (or 6S) six-car diesel-electric multiple units (DEMUs) were built in 1957-1958 . They were built for the London-Hastings line, with a narrow body profile to accommodate the restricted tunnel loading gauge on that line.
The class 206 3 car unit was created in mid 60s using spare motor coach , trailer 2nd, and EPB driving trailer coach . Nicknamed Tadpoles due to the different width of the Hasting stock and the EPB coach. These were used on the Tonbridge to Guildford line for many years.
In final years, sets were mixed up, and 6S and 6L units sometines run together.
Hastings DEMU class 201(6S) formation - DMBSO,TSOL,TFK,TSOL,TSOL,DMBSO
Class 206(Tadpole) formation - DMBSO,TSOL,DTSO
Hastings DEMU class 202(6L) had same formation as class 201, the class 203(6B) has one of the second class open coaches (TSOL) replaced with a buffet car (TRB).
| Description | Model Scales | |
| Class 201(6S) | Click on Red Triangles for link to specific scale item on Shapeways | |
 |
Class 201 Driving Motor Brake 2nd (DMBSO)
requires, chassis, wheels, motor etc |
|
 |

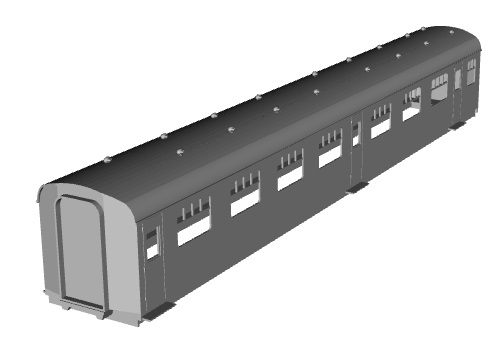

Class 201 Trailer Open 2nd (TSOL)
requires, chassis, wheels etc
|
|
 |

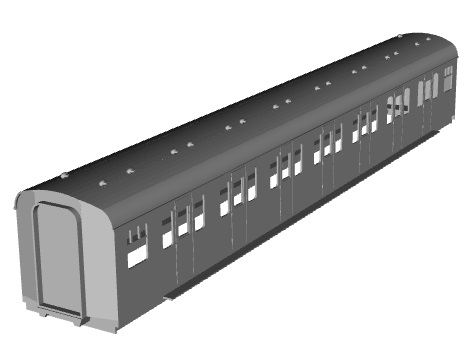

Class 201 Trailer Corridor 1st
(TFK) requires, chassis, wheels etc
|
|
| Class 202(6L),203(6B) | ||
 |

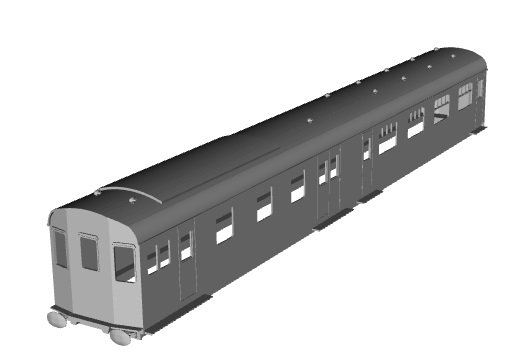

Class 202/3 Driving Motor Brake 2nd (DMBSO)
requires, chassis, wheels, motor etc
|
|
 |

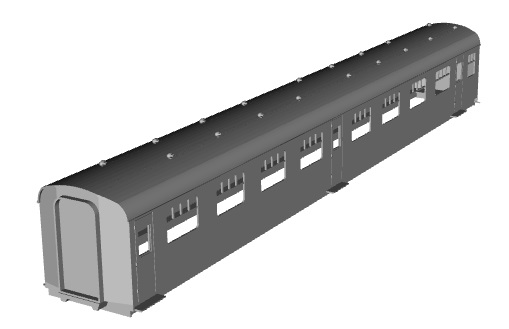

Class 202/3 Trailer Open 2nd
requires, chassis, wheels etc
|
|
 |

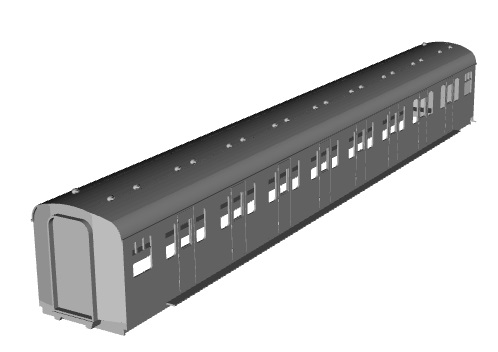

Class 202/3 Trailer Corridor 1st
requires, chassis, wheels etc
|
|
 |

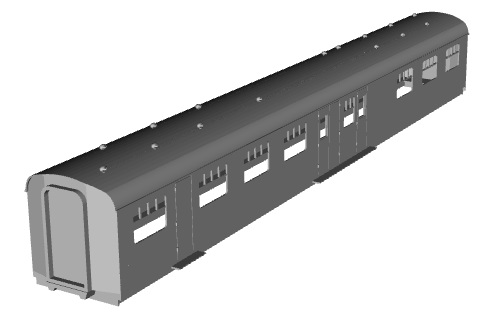

Class 203 Trailer Buffet
requires, chassis, wheels etc
|
|
| Class 206 (Tadpole) | ||
|
Class 201/6 Driving Motor Brake 2nd (DMBSO)
requires, chassis, wheels, motor etc |
|
|
Class 201/6 Trailer Open 2nd
requires, chassis, wheels etc
|
|
 |
BR class 416 /206 Driving Trailer
Second(DTSO)
requires, chassis, wheels, motor etc |
|
Pictures are just for reference, not of specific scaled model.
All 3D printed designs by Simon Dawson (Rue d'Étropal) Just follow links to Cults3d pages.
===============================
