3D Printed standard gauge Articulated Mainline and City Coaches

(ex Great Western Railway region)

The GWR built 3 sets of 6 articulated Mainline and City(ie Commuter) coaches. One set was fully articulated, the other 2 were made up of two 3 coach articulated sets. Each 3 car set was made up of one third brake, one third and one composite. For the 6 coach set the composite was also articulated. Thus 3 types of body, but 4 types of complete coach.

Bogies were 7ft on ends and 8ft 6in on articulated sections.
The coaches were built in the 20s and survived till about 1960.

Description Model Scales
    Click on Red Triangles for link to specific scale item on Shapeways
GWR Articulated mainline and city brake third

The end coach the brake third, which sat on one normal bogie and one articulated one.
requires bogies ,wheels and finishing

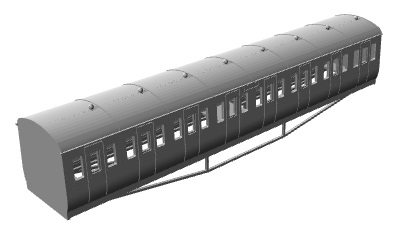

GWR Articulated mainline and city  third

The middle coach (of 3) the third, which sat on two articulated ones.
requires bogies ,wheels and finishing

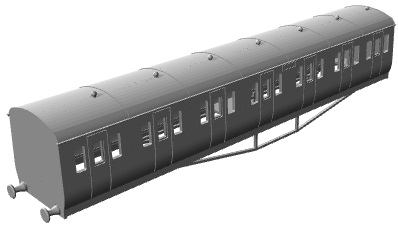

GWR Articulated mainline and city composite (3 coach set)

The end coach the composite, which sat on one normal bogie and one articulated one.
requires bogies ,wheels and finishing

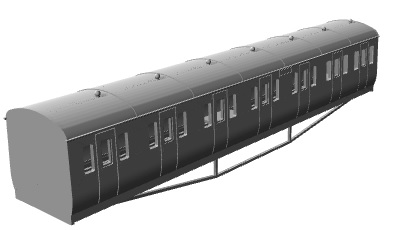

GWR Articulated mainline and city composite (6 coach set)

The composite, which sat on two articulated bogies.
requires bogies ,wheels and finishing



Pictures are just for reference, not of specific scaled model.



All 3D printed designs by Simon Dawson (Rue d'Étropal) , currently produced to order by Shapeways. Just follow links to Shapeways pages.



===============================
