3D Printed  LYR Electric Stock


The Liverpool to Southport line was electrified in 1904, and new electric trains were introduced, proving to be very successful. Electrification was extended to Ormskirk, and most of the route still runs.

Description Model Scales
    Click on Red Triangles for link to specific scale item on Shapeways
LYR electric baggage cars

Two electric baggage cars were built for the Southport to Liverpool line when it was electrified. Each could also accommodate workmen in a separate compartment.
Although built to the same specification D59, they were different in several obvious ways. The first(3028) had a low rounded roof and standard hinged doors, the second(3029) had a clerestory roof and sliding doors. Layout was slight different in each. A third one was supplied just after amalgamation of LYR and LNWR, to diagram D177, very similar to the others, but being steel sided and having an elliptical roof.

Requires chassis, bogies, wheels and finishing

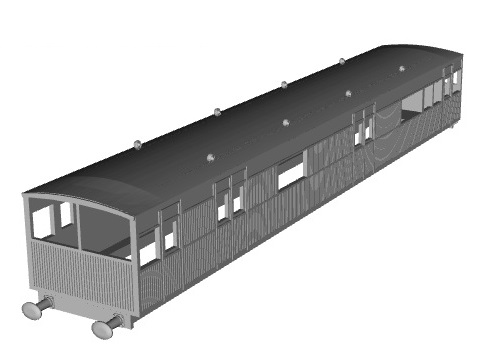

Baggage car 3028



Baggage car 3029




Lancashire and Yorkshire Railway Southport EMUs


Electrification of the Southport route was agreed in 1902. Preston-based Dick, Kerr & Co. was responsible for the traction systems and the L&YR built the rolling stock.
The first batch of trains were open saloons initially in four-car sets. The two driving motor cars were third class. The two trailers were first class or third class .
Electrification meant the journey time of stopping trains to Southport was reduced from 54 to 37 minutes.
The LY&R stock was replaced from 1940 by new trains that became British Rail Class 502 and all had been withdrawn by 1942

Requires finishing off, wheels etc
Motor 3rd

Requires chassis, bogies, wheels and finishing

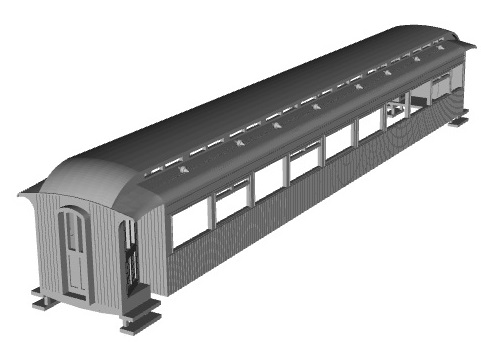

Trailer 1st


Requires chassis, bogies, wheels and finishing

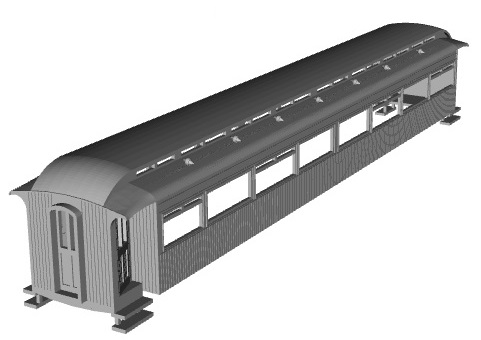

Trailer 3rd

Requires chassis, bogies, wheels and finishing

Pictures are just for reference, not of specific scaled model.



All 3D printed designs by Simon Dawson (Rue d'Étropal) , currently produced to order by Shapeways. Just follow links to Shapeways pages.



===============================
