3D Printed  Southern Railway EMU stock



Description Model Scales
    Click on Red Triangles for link to specific scale item on Shapeways
2SL and 2WIM 3rd rail EMU(ex LBSCR overhead powered)

The LBSCR introduced EMUs using overhead power, but when the Southern Railway took control, they standardised on 3rd rail, so the LBSCR units were converted. Pairs of end cars were put in sets , each end having the original lower roof, making them very different to other EMUs on the railway. Designated 2SL, they spent most of their life on the South London lines.

The original first class trailer coaches were converted into motor and trailer pairs, similar, but no lower roof. These were designated 2WIM, and ran on the Croydon to Wimbledon line

They lasted till the mid 50s.





2SL driver motor brake 3rd


This is the driving motor car.



Requires chassis, bogies, wheels etc and finishing



2SL driver trailer composite


This is the driving trailer car.



Requires chassis, bogies, wheels etc and finishing

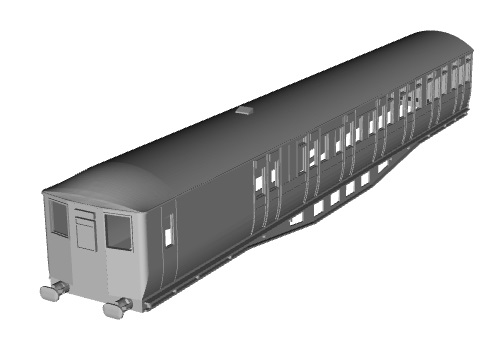

2WIM driver motor composite


This is the driving motor car.



Requires chassis, bogies, wheels etc and finishing

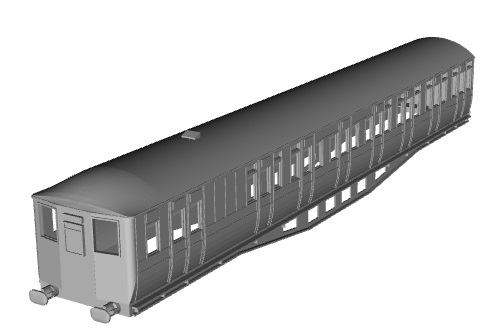

2WIM driver trailer  3rd


This is the driving trailer car.



Requires chassis, bogies, wheels etc and finishing



Bulleid 4DD EMU

Conceived by Oliver Bulleid for the Southern Railway's commuter route from London Charing Cross to Dartford, the two 4DD electric multiple units were the only double-deck trains to run on the main line railway network in Britain.
Driving motor car 13003 is now in the care of Bulleid 4-DD Double Deck EMU Group, which plans to restore.

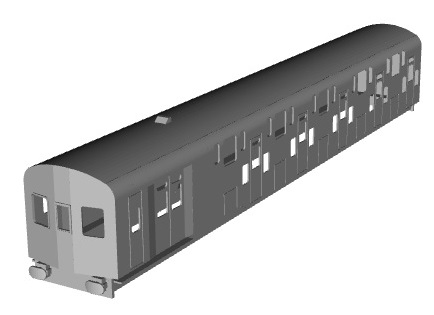

DMBT Driver coach



Requires chassis, bogies, wheels etc and finishing

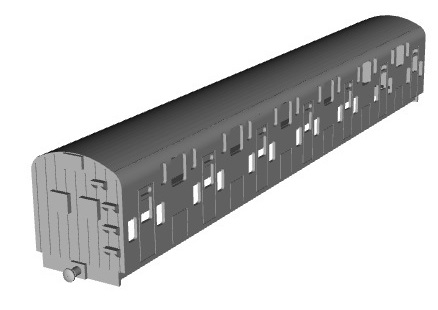

TT Trailer coach

Requires chassis, bogies, wheels etc and finishing
SR(exLSWR) rebuilt 3SUB EMU

Originally built by the LSWR, converting loco hauled coaches with distinctive torpedo shaped cabs . They were an immediate success, and the SR then rebuilt the bodies on longer chassis to handle more passengers. They normally ran as 3 car units(3SUB) but an extra coach could be inserted (4SUB). In this state they survived into BR days.

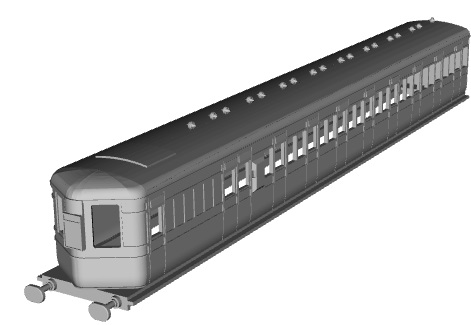

Driving motor brake third coach



requires chassis, bogies and finishing

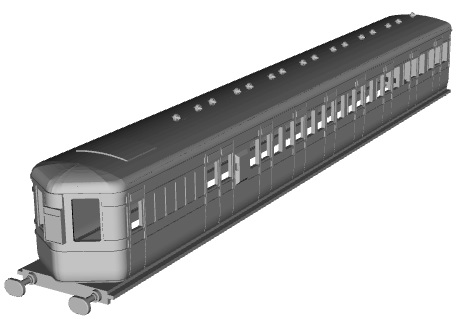

Driving motor brake composite coach



requires chassis, bogies and finishing

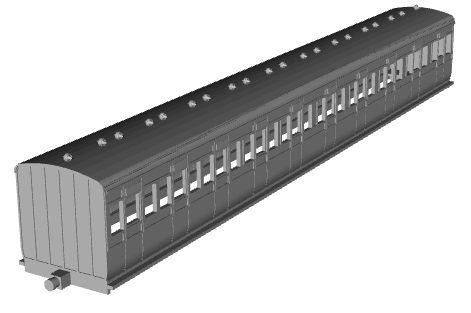

Trailer(centre) composite coach



requires chassis, bogies and finishing

SR 4COR 'Nelson' EMU coach set

SR 4RES 'Nelson' EMU coach set

SR 4BUF 'Nelson' EMU coach set




In 1937 the SR introduced their 12car fully corridor emu trains on the newly electrified Portsmouth line. The name 'Nelson' resulted from the non drivers front window being replaced by destination screen, as corridor door was in centre.

Sets of 4COR and 4RES made up the Portmouth trains.
In 1938 similar trains were introduced on the Mid Sussex line, with buffet car relacing restaurant, in set 4BUF.
In 1962 3 of the 4RES sets had their restauant car fully refurbished in BR Mk 1 coach style as a griddle car.

These electric trains were finally withdrawn from service in 1972.

4COR sets composed of a DMBT,TCK,TTK and DMBT
4RES sets composed of a DMBT,THRK,TRT, and a DMBT
4BUF sets composed of a DMBTmTCK,TRBufK,and a DMBT
Griddle sets composed of DMBT,TFK,TRGriK, and DMBT


4COR,4RES,4BUF

DMBT Drivers Motor Brake Third



Requires chassis, bogies, wheels etc and finishing.

4COR

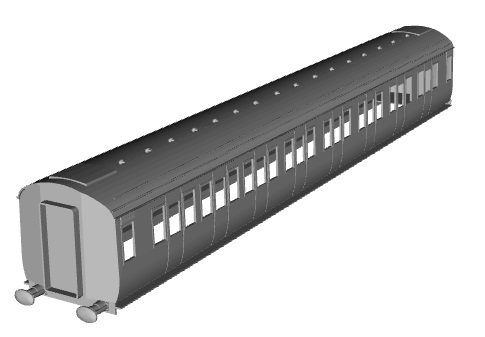

TCK - Trailer Corridor Composite



Requires chassis, bogies, wheels etc and finishing.

4COR

TTK - Trailer Corridor Third


Requires chassis, bogies, wheels etc and finishing.

4RES

TFRK/TRF -Trailer Restaurant First



Requires chassis, bogies, wheels etc and finishing.

4RES

TRTK - Trailer Restaurant Kitchen Third



Requires chassis, bogies, wheels etc and finishing.

4BUF

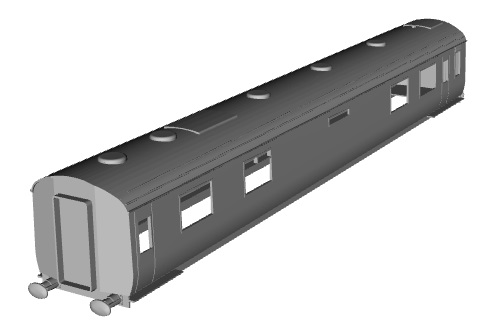

TRBufK - Trailer Buffet



Requires chassis, bogies, wheels etc and finishing.

4BUF

TRBufK - Trailer Buffet(final condition)

Bulleid modified the buffet cars in 1940s, with a brash and contemporary interior.

Requires chassis, bogies, wheels etc and finishing.



6PUL EMU sets

6CIT EMU sets

6PAN EMU sets

The 6PUL sets were introduced in 1932 for the Brighton and Worthing services.
Unusually they included a Pullman Car as part of the set.

The 6CIT sets were introduced at same time as 6PUL, but with TFKs instead of TCK coaches. A Pullman Car was also included. Primarily aimed for business travellers.

The 6PAN sets were introduced in 1935 for the newly electrified Eastbourne and Hastings lines.
Similar to 6PUL and 6CIT sets but with a pantry car replacing Pullman Car

6PAN sets composed of DMBT,TTK,TFRBufK,TFK, TTK and DMBT

6PUL sets composed of DMBT(52 seats) ,TTK, TFK,PulTC, TFK and DMBT(52 seat)

6CIT(sets 3041,3042) composed of DMBT(56 seats) ,TTK, TFK,PulTC, TFK and DMBT(52 seat)

6CIT(set 3043) composed of DMBT(52 seats) ,TTK, TCK,PulTC, TCK and DMBT(52 seat)


After 6PUL and 6PAN sets disbanded, individual coaches refomed into other sets.

6 TC TTK/TCK/TTK/TTK (COR/PAN/PUL )
6 COR TTK/TTK/TFK/TTK (PAN/PUL)
4 PUL Pullman kitchen in RES unit
TFK/TPCK (6 PUL)
4 COR(N) Trailer Third in RES unit
TFK/TTK (6 PUL )
4 COR TFK/TTK (PAN/PUL/RES)

SR 6PUL EMU
(SR 6CIT EMU)

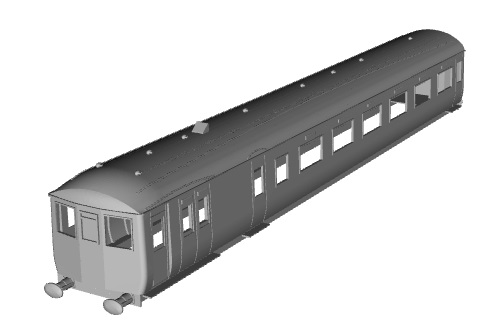

Driving Motor Brake Third (DMBT)


52 seat coach


Requires chassis, bogies, wheels etc and finishing.

SR 6CIT EMU

Driving Motor Brake Third (DMBT)


56 seat coach


Requires chassis, bogies, wheels etc and finishing.

SR 6PAN EMU

Driving Motor Brake Third (DMBT)



Requires chassis, bogies, wheels etc and finishing.
SR 6PAN EMU

(SR 6CIT EMU)

Trailer Corridor First (TFK)



Requires chassis, bogies, wheels etc and finishing.

SR 6PAN EMU

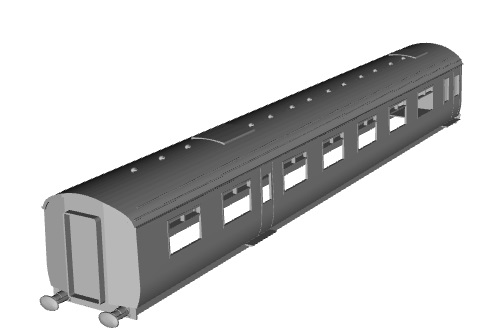

Trailer Buffet Kitchen First (TFBufK)



Requires chassis, bogies, wheels etc and finishing.



SR 6PUL EMU
(SR 6CIT EMU)

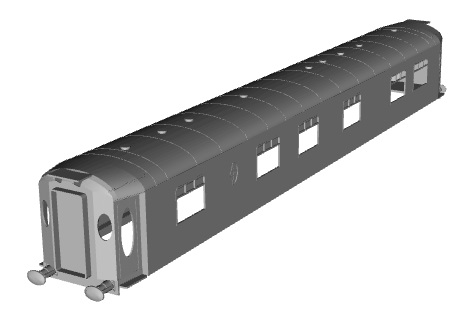

Trailer Pullman Composite Coach


Requires chassis, bogies, wheels etc and finishing.



SR 5BEL Brighton Belle EMU


One of the most famous luxury electric trains in UK, introduced in 1931/2 to run between London and Brighton.
Continued in operation up till 1972

Each 5 car set composed of

Motor Brake Third (PulDMBT)
Parlour Third(PulTTL)
Kitchen First (PulTFK)
Kitchen First (PulTFK)
Motor Brake Third (PulDMBT)

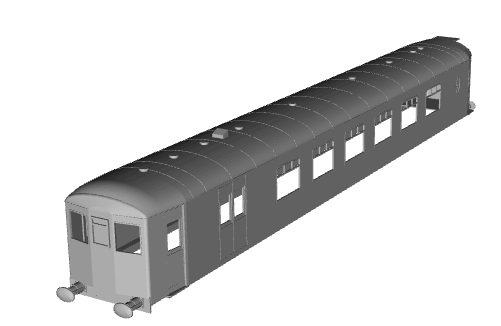

Driving Motor Brake Third (pulDMBT)


Requires finishing off, wheels etc

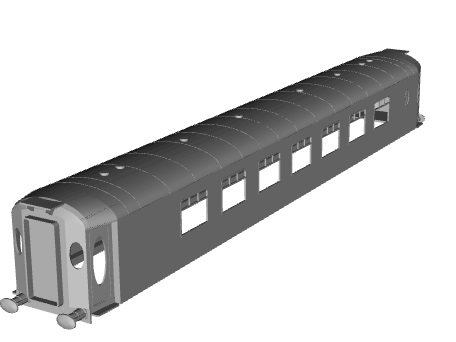

Trailer Third (pulTTL)

Requires finishing off, wheels etc

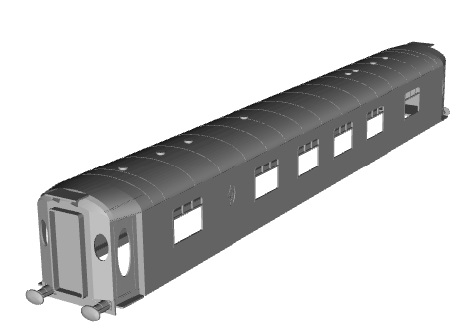

Trailer First with Kitchen (pulTFK)

Requires finishing off, wheels etc

Southern Railway 2-BIL EMU

The Southern Railway 2-BIL electric multiple units were built during the 1930s to work long-distance semi-fast services on the newly electrified lines from London to Eastbourne, Portsmouth and Reading. They survived in British Rail ownership long enough to be allocated TOPS Class 401.
The different batches were broadly similar, though in the first one, the driving motor brake car had a smaller brake compartment and seven full compartments, rather than six-and-a-half in the later batches.
Last set withdrawn in 1971. One set is preserved.

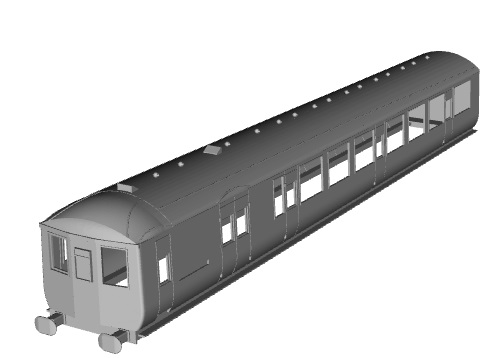

Driver motor brake 3rd(1st batch)




Requires chassis and finishing

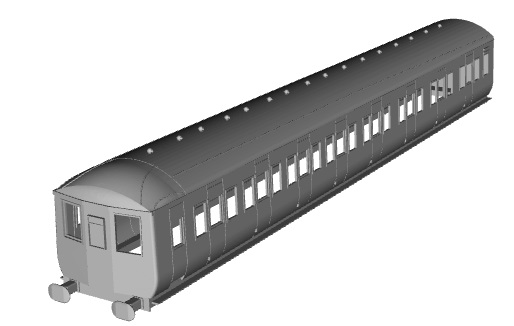

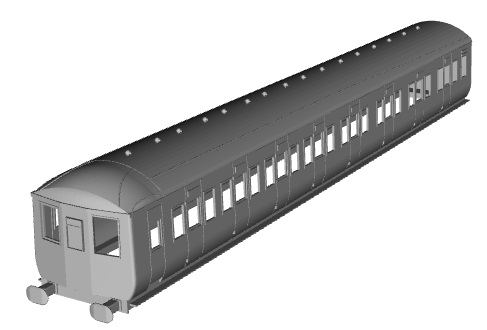

Driver Trailer composite(1st batch)


Requires chassis and finishing
Driver motor brake 3rd(2nd-4th batches)




Requires chassis and finishing
Driver Trailer composite            (2nd-4th batches)


Requires chassis and finishing
Southern Railway 4SUB(both  batches) EMU (class 405)

During 1940s the SR introduced a new welded steel 4-car suburban unit with curved sides, seating six passengers across rather than the normal five.
The later batches introduced at end of WW2 had slab fronts. They continued to be built into BR days, and survived up till 1980s. Designated class 405 under TOPS.
Used on the London suburban services of all three divisions of BR (S).
Unit number 4732, formed of DMBTO 12795, TT 10239, TTO 12354 and DMBTO 12796 is preserved

Driver motor brake 3rd(first batch)






Requires chassis and finishing
Trailer third(first batch)







Requires chassis and finishing

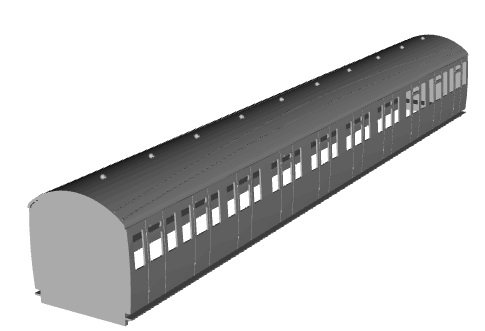

Trailer composite/third

(first batch)







Requires chassis and finishing

Driver motor brake 3rd(later batch)






Requires chassis and finishing

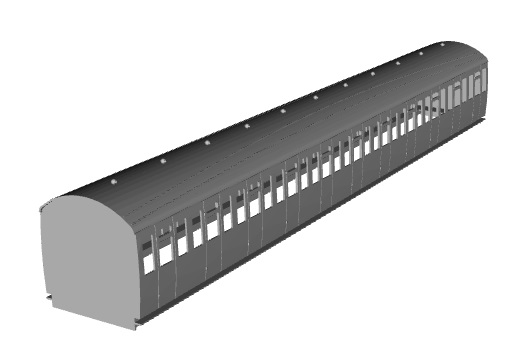

Trailer third(later batch)







Requires chassis and finishing


Trailer third- 9 compartment( Later batch)




Requires chassis and finishing

Pictures are just for reference, not of specific scaled model.

---------------------------------------------------------

All 3D printed designs by Simon Dawson (Rue d'Étropal) , currently produced to order by Shapeways. Just follow links to Shapeways pages.



===============================
