3D Printed

SR push pull standard gauge coaches

Various SR built/converted  pushpull coaches

Description Model Scales
    Click on Red Triangles for link to specific scale item on Shapeways

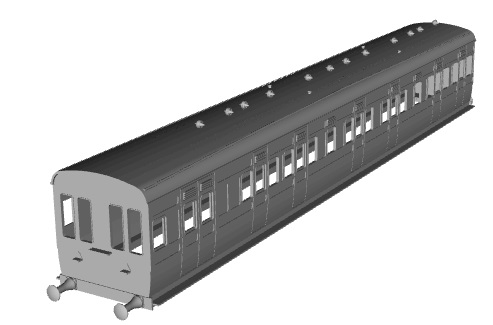

SR/LSWR diagram 419 56ft brake composite driver push pull coach


Converted from diagram 408 into push pull coaches by Southern Railway in 1937. Formed part of sets 1 to 6, originally with a diagram 97 brake third coach.Paired with other coaches over the years. Coach 6488 (set 1) ended up being paired with an ex SECR diagram 52 coach.

Requires chassis, bogies etc.

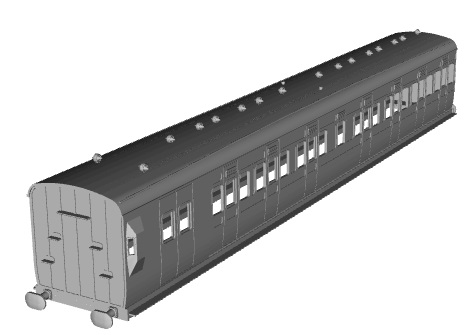

SR/LSWR diagram 97 58ft brake third trailer push pull coach


Converted from LSWR 48ft Tri-composite coaches into push pull coaches by Southern Railway in 1930s. Formed part of sets 1 to 6, originally with a diagram 419 brake composite coach.Paired with other coaches over the years.

Requires chassis, bogies etc.

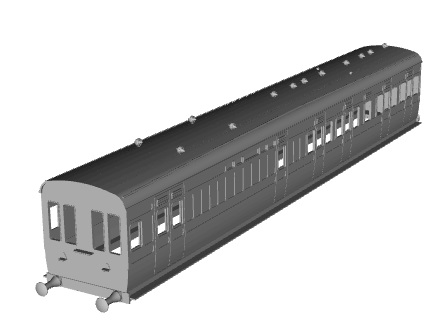

SR/LSWR diagram 235 56ft brake composite driver push pull coach


Converted from diagram 126 into push pull coaches by Southern Railway in 1939. Formed part of sets 31 to 36, originally with a diagram 286/7/90 brake composite coach. Paired with other coaches over the years.

Requires chassis, bogies etc.

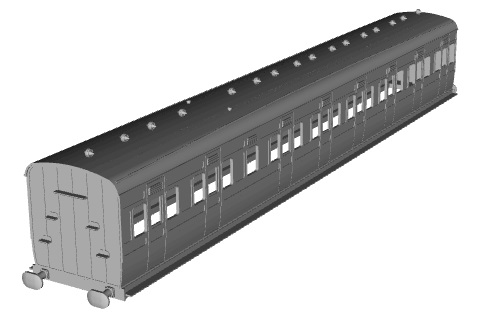

SR/LSWR diagram 286 58ft composite trailer push pull coach


Converted from LSWR 48ft Tri-composite coaches into push pull coaches by Southern Railway in 1930s. Formed part of sets 31 to 33, originally with a diagram 235 brake third coach.Paired with other coaches over the years.

Requires chassis, bogies etc
SR/LSWR diagram 287 58ft composite trailer push pull coach


Converted from LSWR 48ft Tri-composite coaches into push pull coaches by Southern Railway in 1930s. Formed part of sets 34 to 36, originally with a diagram 235 brake third coach.Paired with other coaches over the years.

Requires chassis, bogies etc.
SR Maunsell driving composite brake coach D2407

Some Maunsell coaches were converted into push pull driver and trailer coaches in 1950s, after older stock was withdrawn because it was over 30 years old.


Requires chassis and finishing

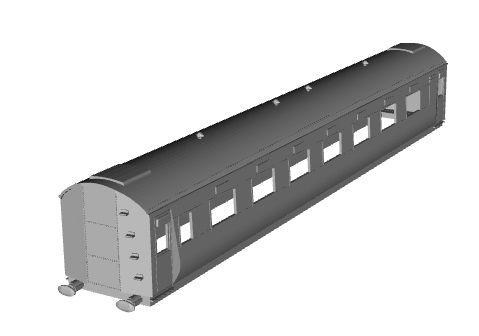

SR Maunsell trailer second Coach D2023

Some Maunsell coaches were converted into push pull driver and trailer coaches in 1950s, after older stock was withdrawn because it was over 30 years old.


Requires chassis and finishing

Pictures are just for reference, not of specific scaled model.

---------------------------------------------------------

All 3D printed designs by Simon Dawson (Rue d'Étropal) , currently produced to order by Shapeways. Just follow links to Shapeways pages.



===============================
