3D Printed

LSWR pushpull/motor coaches

LSWR push pull vestibule coaches


Description Model Scales
    Click on Red Triangles for link to specific scale item on Shapeways

Pushpull coaches (diagram 136), to work w ith additional coach(diagram 25) , first introduced in 1906. Built to a similar style as the main batch of steam railmotors(H13). Originally designed to be pulled by the small C14 loco, itself based on the railmotor, and found to be underpowered , as was its replacement the S14 . Eventually the O2 0-4-4T as used, and these coaches mainly operated in the Plymouth area.
Converted from wire control to air-control by the Southern Railway, with a modified driving cab end, they eventually were withdrawn from service in 1939.

LSWR diagram 136

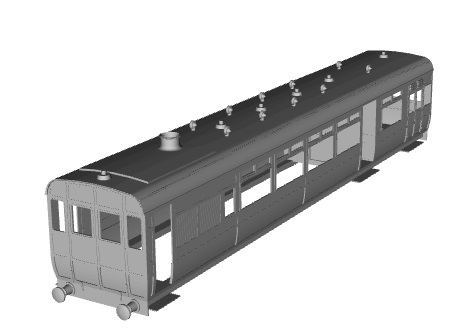

Driver coach


Requires chassis, bogies etc.
LSWR diagram 136(modified)

Driver coach


Requires chassis, bogies etc.
LSWR diagram 25

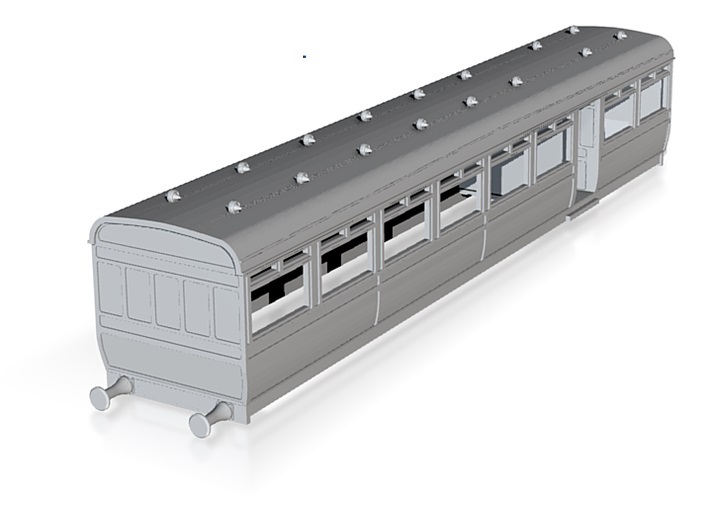

non driving coach


Requires chassis, bogies etc.

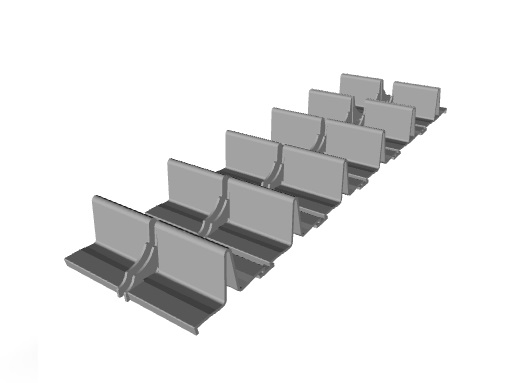

Seating for D136coach

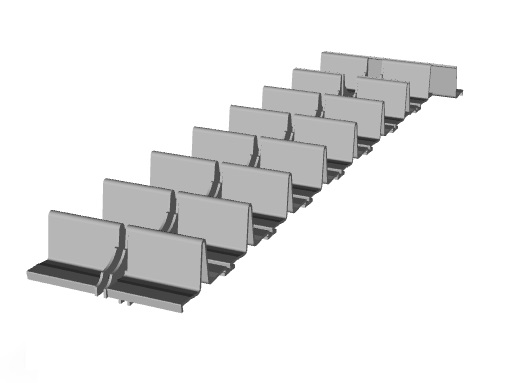

Seating for D25 coach

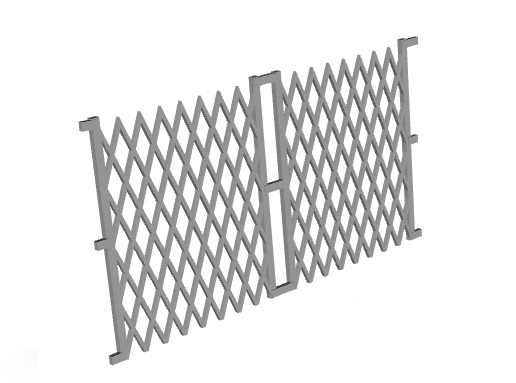

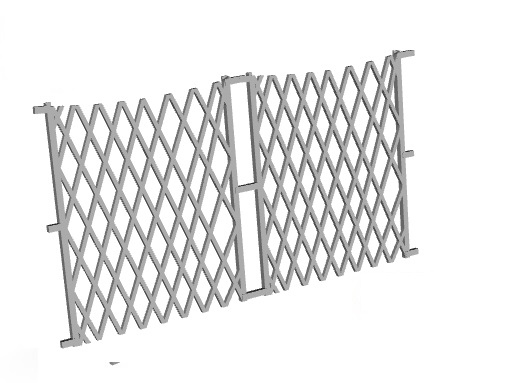

Gates in original condition
Gates in worn condition
LSWR push pull vestibule coaches(diagram 1414/129), to work with addition coach(diagram 27) , first introduced in 1906. Built as steam railmotors(H13). Converted to open vestibule pushpull coaches from 1914.
Converted from wire control to air-control by the Southern Railway, with a modified driving cab end, they eventually were withdrwn from service by 1960.
None are preserved.
LSWR diagram 414

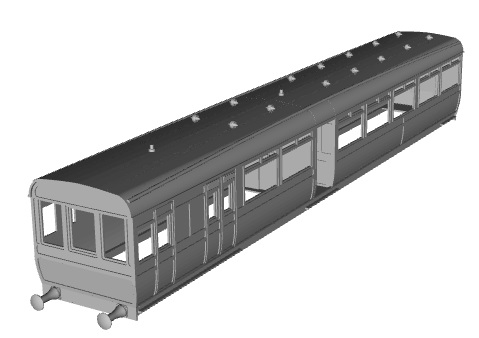

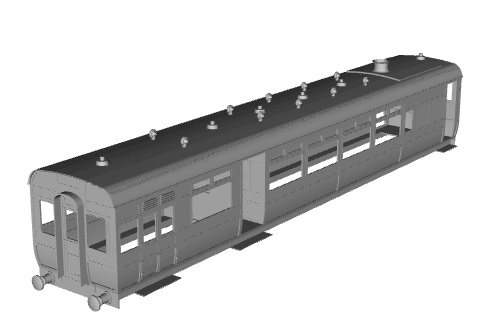

Driver coach


Requires chassis, bogies etc.
LSWR diagram 414 (modified)

Driver coach


Requires chassis, bogies etc.
LSWR diagram 27

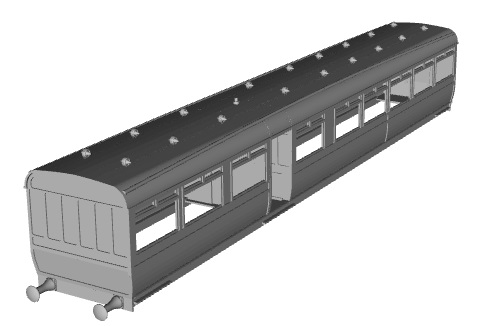

non driving coach


Requires chassis, bogies etc.
gates

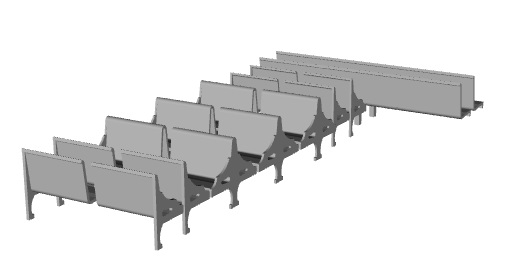

seats for d414
seats for d27
LSWR diagram 415 vestibule pushpull coach
LSWR diagram 29 pushpull trailer coach



Around about 1919 the LSWR converted 12 of its H13 railmotors into 2 car pushpull brake composites, and one into a trailer third.
None were converted from wire control to air-control by the Southern Railway, so they wre then used as conventional stock not pushpull, and some survived into mid 1950s, ranging far and wide.
None are preserved.
LSWR diagram 415 vestibule pushpull coach

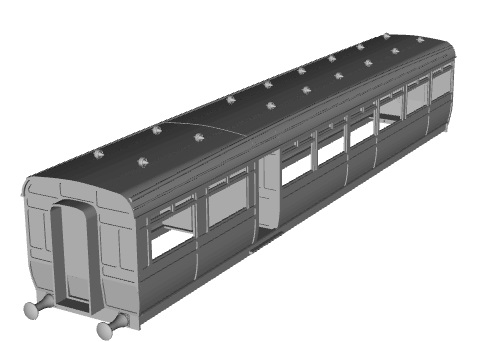

LSWR diagram 29 pushpull trailer coach

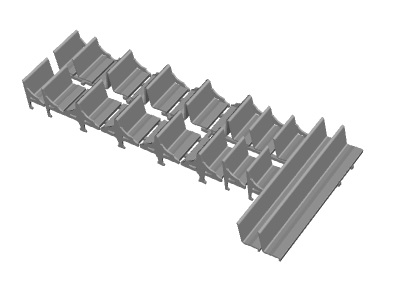

seat set for either d415 or d29

Pictures are just for reference, not of specific scaled model.

---------------------------------------------------------

All 3D printed designs by Simon Dawson (Rue d'Étropal) , currently produced to order by Shapeways. Just follow links to Shapeways pages.



===============================
