Plain surfaced 16.5mm Gauge GaugeTrack

These track panels are designed to fit Peco code 100 rail.

Useful for various scales including OO,HO and larger narrow gauge scales such as O16.5, On30 ,1/32n2, 1/35n2 and Gn15, even bigger scales!


recommended for indoor use only, as plastic is not fully water proof

Link to :

           OO gauge wagon turntables

        >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>  back to Track Menu page

Inserts for points and crossings (now with integrated base)

  Description Template

 P-165stp-point-insert-rh RIGHT

tramway insert designed to fit into Peco Setrack Right hand point. Plain surface. Just clips in place, but preferable to fix permanently, either with glue or pin. All pieces now joined, so need to separate them before fitting.

Now includes side pieces and base which separating before assembly.

Template same as full panel

Print off template

P-165stp-point-insert-lh LEFT

tramway insert designed to fit into Peco Setrack Left hand point. plain surface pattern, . Just clips in place, but preferable to fix permanently, either with glue or pin. Note parts now come joined so need separating before fitting. ....

Now includes side pieces and base which separating before assembly.

Template same as full panel

Print off template

P-165stp-y-point-insert-1a

dockyard/tramway insert for Peco Setrack Y point with plain surface

Now includes side pieces and base which separating before assembly.

Template same as full panel

Print off template

standard (code 100 rail)

P-165stp-small-y-point-insert-1a

plain surface insert for Peco small Y point OO/HO  . Ideal for dockyards, industrial areas, goods yards, tramways, level crossings.

Now includes side pieces and base which separating before assembly.

Print off template

standard(code 100 rail)

P-165stp-short-crossing-pl-2a

plain surfaced inserts for small Peco OO/HO railcrossing. Ideal for dockyards, industrial areas, goods yards, tramways, level crossings

Now includes side pieces and base which separating before assembly.

Print off template

standard(code 100 rail)

P-165stp-small-rh-point-plus-base-1a

wrap around inlay for Peco small radius(2ft) right hand point, with plain surface. Inlays need separating from main wrap around panel. Some small amount of trimming might be needed.

Print off template

standard(code 100 rail)

P-165stp-small-lh-point-plus-base-1a


wrap around inlay for Peco small radius(2ft) left hand point, with plain surface. Inlays need separating from main wrap around panel. Some small amount of trimming might be needed.

Print off template

standard(code 100 rail)

P-165stp-medium-rh-point-plus-base-1a

wrap around inlay for Peco medium radius(3ft) right hand point, with plain surface. Inlays need separating from main wrap around panel. Some small amount of trimming might be needed.

Print off template

standard(code 100 rail)

P-165stp-medium-lh-point-plus-base-1a

wrap around inlay for Peco medium radius(3ft) left hand point, with plain surface, and code 100 rail version. Inlays need separating from main wrap around panel. Some small amount of trimming might be needed

Print off template

standard(code 100 rail)

P-165stp-large-rh-point-plus-base-1a

wrap around inlay for Peco large radius(4ft) right hand point, with plain surface. Inlays need separating from main wrap around panel. Some small amount of trimming might be needed.

Print off template

standard(code 100 rail)

P-165stp-large-lh-point-plus-base-1a

wrap around inlay for Peco large radius(4ft) left hand point, with plain surface. Inlays need separating from main wrap around panel. Some small amount of trimming might be needed.

Print off template



Description Template

P-165stp-tram-point-rh-live-pl-1a

Right hand point using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, and can be built as either live or insulated frog. Plain/tarmac type surface . Radius is approximately 17.25in(438mm). Angle of point is 22.5deg. Requires track building skills

Print off template



P-165stp-tram-point-lh-live-pl-1a

Left hand point using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, and can be built as either live or insulated frog. Plain/tarmac type surface . Radius is approximately 17.25in(438mm). Angle of point is 22.5deg. Requires track building skills.
Print off template

P-165stp-y-tram-point-100-live-pl-3a

Y point using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, and can be built as either live or insulated frog. Plain/tarmac type surface . Radius is approximately 33.8in(859mm). Angle of point is 11.25deg. Requires track building skills
Print off template

P-165st-tram-point-half-y-live-pl-1a

Half Y point using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, and can be built as either live or insulated frog. Plain/tarmac type surface . Radius is approximately 17.25in(438mm). Angle of point is approx 15deg. Requires track building skills
Print off template

P-165stp-rh-point-250r-100-live-pl-3a

Right hand point using 25cm radius curve, but compatible with trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, and can be built as either live or insulated frog. Plain/tarmac type surface . Radius is 25cm. Angle of point is 30deg. Distance between parallel tracks is very close to that between trainset R2 radius tracks. (67mm).Straight length is 125mm(very near to 3 pieces of 42mm straight section). Requires track building skills.
Print off template

P-165stp-lh-point-250r-100-live-pl-3a

Left hand point using 25cm radius curve, but compatible with trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, and can be built as either live or insulated frog. Plain/tarmac type surface . Radius is 25cm. Angle of point is 30deg. Distance between parallel tracks is very close to that between trainset R2 radius tracks. (67mm).Straight length is 125mm(very near to 3 pieces of 42mm straight section). Requires track building skills.
Print off template

P-165stp-half-y-point-250r-100-live-pl-3a

Half Y point using 25cm radius curve, but compatible with trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, and can be built as either live or insulated frog. Plain/tarmac type surface . Radius is 25cm. Angle of point is approx 21deg. Distance between parallel tracks is very close to that between trainset R2 radius tracks (67mm). Requires track building skills.
Print off template

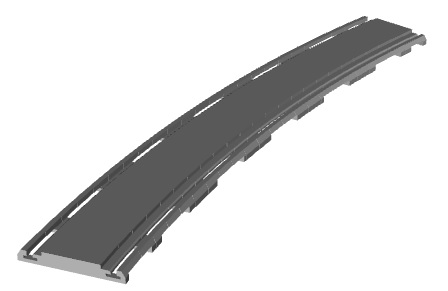

P-165stp-long-curved-r2-tram-track-100-pl-2a

Curved track section to match R2 points using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, Plain/tarmac type surface . Radius is approximately 17.25in(438mm). Angle of section is 22.5deg
Print off template

P-165stp-short-curved-r2-tram-track-100-pl-2a

Curved track sections to match R2 points using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, Plain/tarmac type surface . Radius is approximately 17.25in(438mm). Angle of 1 piece is 5.625deg.
Print off template

P-165stp-long-straight-tram-track-100-pl-2a

Longer straight sections using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail. Plain/tarmac type surface . Each section is 168mm long, soare same length as LH and RH 2R points
Print off template

P-165stp-short-straight-tram-track-100-pl-2a

Short straight sections using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail. Plain/tarmac type surface . Each section is 42mm long, so 4 sections are same length as LH and RH 2R points
Print off template

P-165stp-long-curved-y-tram-track-100-pl-3a

longer curved section to match Y point using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail. Plain/tarmac type surface . Radius is approximately 33.8in(859mm). Angle of section is 11.25deg.longer section of curve for Y point with Plain/tarmac surface
Print off template

P-165stp-short-curved-y-tram-track-100-pl-3a

curved sections to match Y point using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail. Plain/tarmac type surface . Radius is approximately 33.8in (859mm). Angle of 1 section is 2.81deg
Print off template

P-165stp-curve-tram-long-250r-pl-3a

Sections to make up 25cm radius curve, but compatible with trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail. Plain/tarmac type surface . Radius is 25cm. Angle of 1 section is 30deg. Distance between parallel tracks is very close to that between trainset R2 radius tracks.(67mm)longer version of 250mm radius curve with Plain/tarmac stones. angle is 30 degrees
Print off template

P-165stp-curve-tram-short-250r-pl-3a

Sections to make up 25cm radius curve, but compatible with trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail. Plain/tarmac type surface . Radius is 25cm. Angle of 1 section is 10deg. Distance between parallel tracks is very close to that between trainset R2 radius tracks.(67mm)
Print off template
P-165stp-flexi-tram-track-100-pl-x72-1a

72 short 7mm pieces, plain flat surface. when fitted to code 100 rail, can bent to various curves, Any small gaps would need to be filled, and best for larger radius curves.




P-165stp-flexi-tram-track-100-x48-1a

48 short 7mm pieces, plain flat surface. when fitted to code 100 rail, can bent to various curves, Any small gaps would need to be filled, and best for larger radius curves.

  P-165stp-flexi-tram-track-100-x24-1a

24 short 7mm pieces, plain flat surface. when fitted to code 100 rail, can bent to various curves, Any small gaps would need to be filled, and best for larger radius curves.
