(Above shows prototype plan for TT120)
Build a viaduct or bridge in various scales and gauges using 3D printed parts.
Primarily for set radius track, but flexi track could also be used.
Designed with pins and sockets so sections fit together. Holes may need slightly enlarging depending on print set up. 6mm diameter pegs are to fit arch module to top section.
All sections are solid rather than hollow as this proved to be faster to print.
Leg modules can be fitted to increase height.
suitable bases are included to help complete model fit together.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> back to Track Menu page
 |
N gauge |

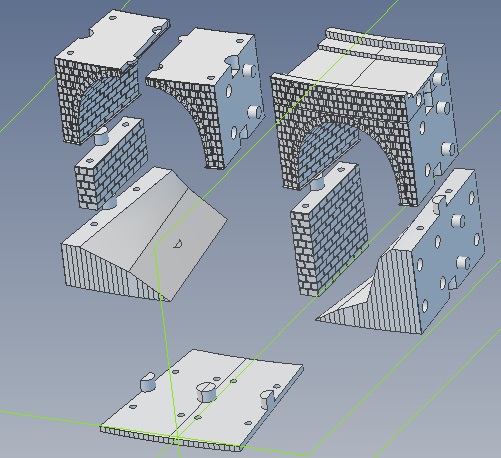

1st radius curve - arch
Viaduct arch module single track radius 1 (228mm) |
1st radius curve wall

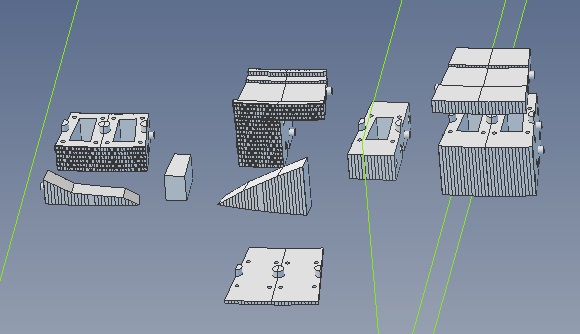

Viaduct wall module single track radius 1 (228mm)
|
2nd radius curve arch

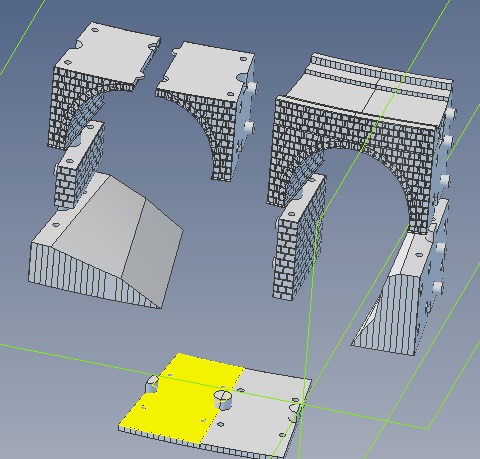

Viaduct arch module single track radius 2 (263.5mm) |
2nd radius curve wall

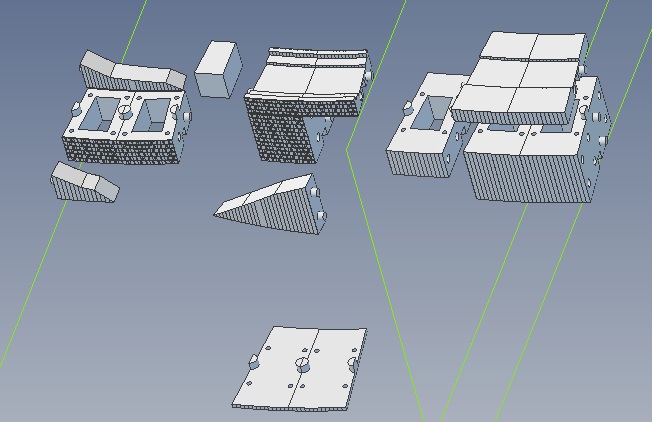

Viaduct wall module single track radius 2 (263.5mm)
|

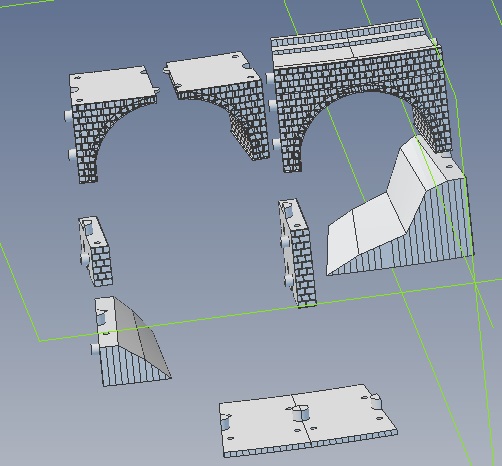

3rd radius curve arch
Viaduct arch module single track radius 3 (298.5mm)
|
3rd radius curve wall

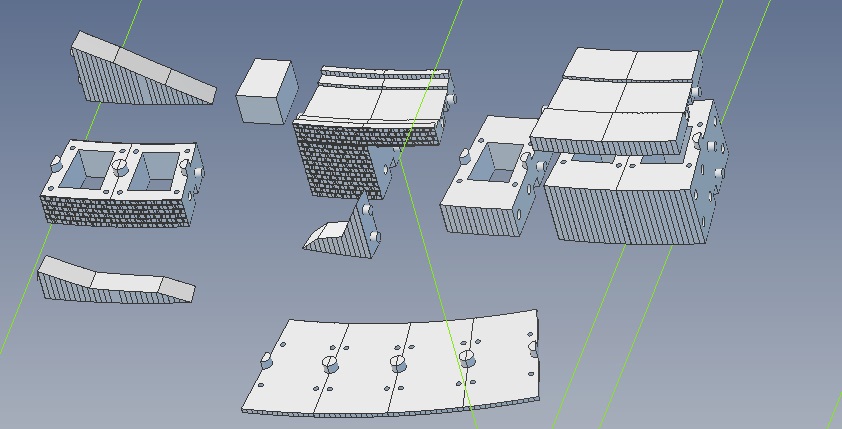

Viaduct wall module single track radius 3 (298.5mm)
|
Single straight arch

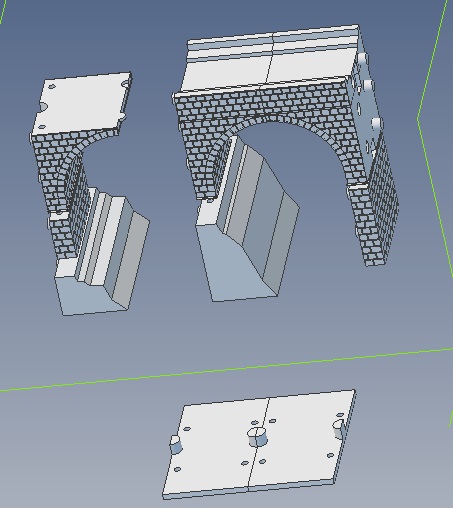

Viaduct arch module single track straight
|
Single straight wall

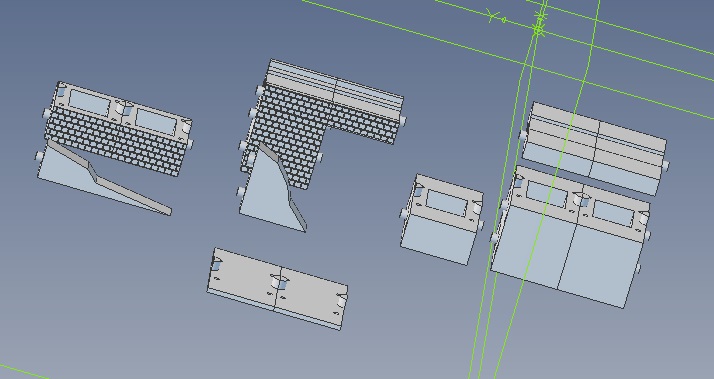

Viaduct wall module single track straight
|

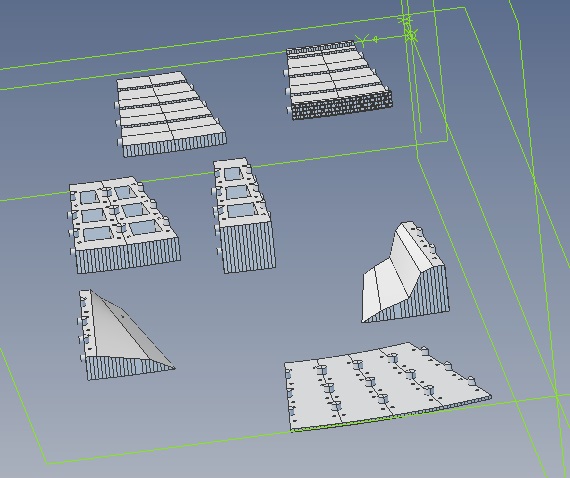

1st 2nd 3rd radius triple track
Viaduct module extra parts for triple track radius1(228mm),radius 2(263.5mm) and radius 3 (298.5mm)
|

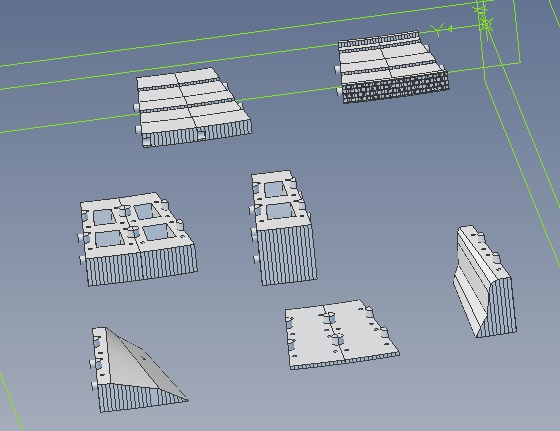

1st 2nd double track
Viaduct module extra parts for double track radius1(228mm) and radius 2(263.5mm)
|
2nd 3rd double track
Viaduct module extra parts for double track radius 2(263.5mm) and radius 3 (298.5mm)
|
Double straight track

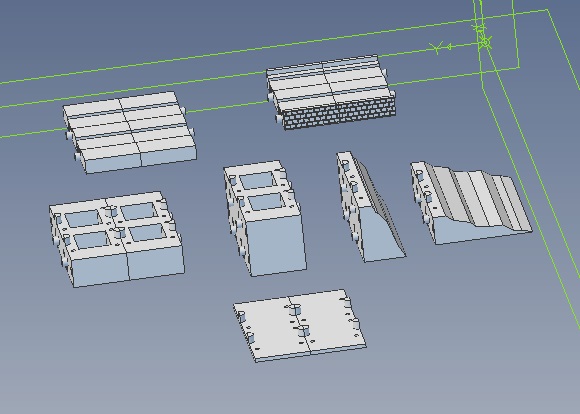

Viaduct module extra parts for double track straight
|
Triple straight Track

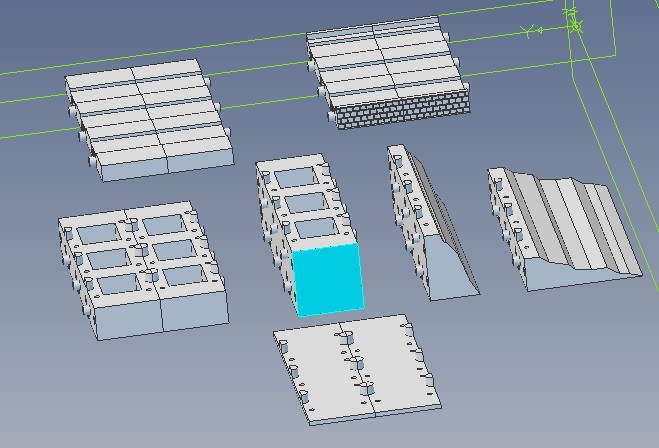

Viaduct module extra parts for triple track straight
|
