16.5mm Narrow Gauge GaugeTrack

These track panels are designed to fit Peco code 100 rail.
recommended for indoor use only, as plastic is not fully water proof

Link to :

          Mixed gauge 16.5mm/9mm gauges

       16.5mm Narrow Gauge wagon turntables

       16.5mm Narrow Gauge small turntables

       Mixed gauge 32mm/16.5mm gauges

       16.5mm NG Board Joining Track

      >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>  back to Track Menu page

Inserts for points and crossings (including bases)

  Description Template

P-165st-right-hand-point-insert-3a

larger stone version(2 stones per sleeper) to clip into stards right hand OO point(R2 ) made by Peco. Suitable for larger narrow gauge scales such as O16.5 and On30,

Now includes base to clip on

Templates same as track sections

Print off template

P-165st-left-hand-point-insert-3a

larger stone version(2 stones per sleeper) to clip into stardard left hand OO point(R2 ) made by Peco. Suitable for larger narrow gauge scales such as O16.5 and On30,

Now includes base to clip on

Templates same as track sections

Print off template

P-165st-y-point-3a

Y point insert for Peco Setrack Y,with large stone surface.

Now includes base to clip on

Templates same as track sections

Print off template

P-165st-small-y-point-insert-3a

arge stone surface inserts for small Peco Y point OO/HO. Ideal for dockyards, industrial areas, goods yards, tramways, level crossings.

Now includes base to clip on

Templates same as track sections

Print off template

P-165st-short-crossing-2a

large stone surfaced inserts for small Peco OO/HO rail crossing. Ideal for dockyards, industrial areas, goods yards, tramways, level crossings.

Now includes base to clip on

Templates same as track sections

Print off template

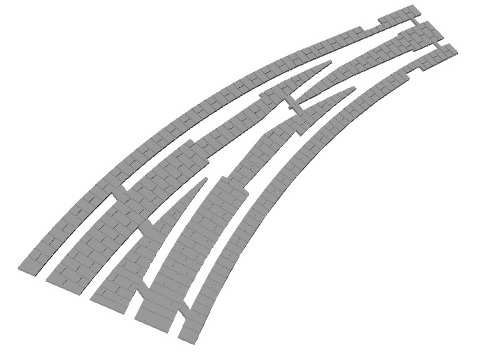

P-165st-left-hand-small-point-insert-plus-base-3a

large stoned version of 'wrap around' inlay for Peco small radius OO/HO point, left
hand.
Print off template
P-165st-right-hand-small-point-insert-plus-base-3a

large stoned version of 'wrap around' inlay for Peco small radius OO/HO point, right
hand.
Print off template



  Description Template


P-165st-left-point-100-live-9a
A full tram track panel, with large stone pattern, same geometry as Peco setrack points. LEFT hand. Just fit code 100 rail. One for the more experience railway modeller. Could be modelled as a dummy point, where track runs off board, or to add interest.

Print off template



P-165st-right-point-100-live-9a

A full tram track panel, with large stone pattern, same geometry as Peco setrack points. Right hand. Just fit code 100 rail. One for the more experience railway modeller. Could be modelled as a dummy point, where track runs off board, or to add interest.

Print off template

P-165st-y-tram-point-100-live-1a

Y point with large stone surface. fit code 100 rail
Print off template
P-165st-crossing-22-5-100-1a

16.5mm gauge crossing with large stone surface. 22.5 degree angle. suits narrow gauge (eg O16.5).fits code 100 rail.can be built as live or dead frog.

Print off template

P-165st-long-curved-r2-tram-track-100-6a

standard r2 curve section with large stone surface, suiting larger scales eg On30, O16.5, Gn15


Print off template

P-165st-short-curved-r2-tram-track-100-3a

short r2 curve section with large stone surface suiting larger scales eg On30, O16.5,Gn15
Print off template

P-165st-curve-tram-long-250r-1a

25cm radius curve, 30deg with large stone surface. fit code 100 rail.
Print off template

P-165st-short-straight-tram-track-100-3a

short straight with large stone surface, suit larger scales such as On30, O16.5, Gn15

Print off template
P-165st-long-straight-tram-track-100-6a

standard straight section with large stone surface, suit larger narrow gauge eg On30, O16.5, Gn15
Print off template
P-165st-flexi-tram-track-100-x48-1a

48 pieces of small stone section top make flexi inset track 16.5mm gauge with large stones for narrow gauge(eg O16.5). fit code 100 rail.Each section is 7mm long.

P-165st-flexi-tram-track-100-x24-1a

24 pieces of small stone section top make flexi inset track 16.5mm gauge with large stones for narrow gauge(eg O16.5). fit code 100 rail.Each section is 7mm long.



P-165st-lh-point-100r-100-live-1a

left hand 10cm radius 16.5mm gauge point with large stone surface. fit code 100 rail



Print off template
P-165st-rh-point-100r-100-live-1a

10cm radius right hand point. fit code 100 rail

Print off template
P-165st-short-curve-100r-100-1a

10cm radius curve, 30 degree angle, large stone surface. fit code 100 rail

Print off template
P-165st-long-curve-100r-100-1a

10cm radius curve, 90degrees. large stone surface, fits code 100 rail

Print off template

Wedges to fit between track sections

P-165st-left-inside-wedge-1a

inside edge for either standard R2 curve or point with large stone surface


P-165st-left-outside-wedge-1a

outside wedge for left hand standard curve with large stone surface


P-165st-right-outside-wedge-1a


outer wedge for right hand standard r2 curve with large stone surface


P-165st-right-inside-wedge-1a

inside edge for either right hand r2 standard curve or point, with large stone surface


P-165st-straight-long-wedge-1a

straight wedge to fit between parallel tracks, with large stone surface


P-165st-tram-Y-point-wedge-inner-1a

large stone surfaced inner wedge for Setrack Y point curves attached to Y point.


P-165st-tram-Y-point-wedge-inner-LH-1a

inner left hand wedge for Y curve/point, with large stone surface


P-165st-tram-Y-point-wedge-outer-LH-1a

outer left hand wedge for setrack Y curve/point with large stone surface


P-165st-tram-Y-point-wedge-outer-RH-1a

outer right hand wedge for setrack Y curve/point with large stone surface


P-165st-tram-Y-point-wedge-inner-RH-1a

inner right hand wedge for setrack Y curve/point with large stone surface
