OO GaugeTRAM Track

Smaller radius track more suited to trams instead of trains. Standard track sections can also be used for trams but are listed under OO track section.

These track panels are designed to fit Peco code 100 .
recommended for indoor use only, as plastic is not fully water proof

Illustrations and templates  are based on either conduit or non conduit standard versions. Overall designs are same

Link to :

           OO Gauge stone surface track

          OO Gauge plain surface track

       OO Gauge wagon turntables

       OO Gauge small turntables

       OO and OO9 mixed gauge track

       OO and 12mm mixed gauge

       >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>  back to Track Menu page



Full track sections for code 100 rail unless otherwise stated

  Description Template

P-165stw-LEFT-point-250r-100-live-3a OO gauge

P-165stw-lh-point-250r-plus-100-live-3a(conduit version)

Left hand point using 25cm radius curve, but compatible with trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, and can be built as either live or insulated frog. Smaller stone pattern similar to Wills OO stone setts.
Radius is 25cm. Angle of point is 30deg. Distance between parallel tracks is very close to that between trainset R2 radius tracks. (67mm).Straight length is 125mm(very near to 3 pieces of 42mm straight section). Requires track building skills.

Print off template

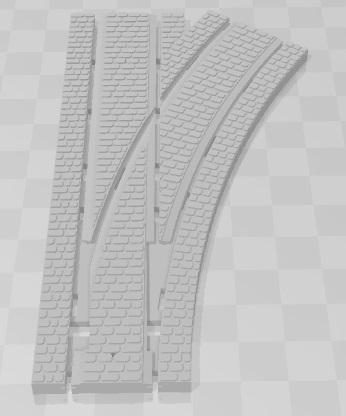

P-165stw-RIGHT-point-250r-100-live-3a OO gauge

P-165stw-rh-point-250r-plus-100-live-3a(conduit version)

Right hand point using 25cm radius curve, but compatible with trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, and can be built as either live or insulated frog. Smaller stone pattern similar to Wills OO stone setts.
Radius is 25cm. Angle of point is 30deg. Distance between parallel tracks is very close to that between trainset R2 radius tracks. (67mm).Straight length is 125mm(very near to 3 pieces of 42mm straight section). Requires track building skills

Print off template

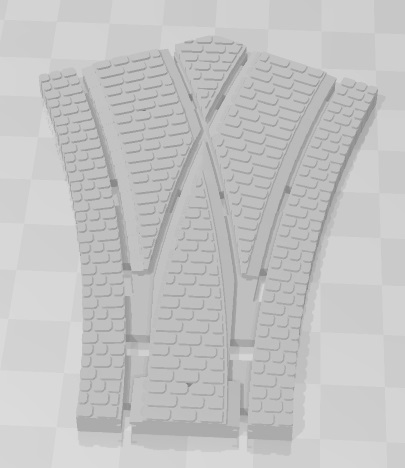

P-165stw-half-y-point-250r-100-live-w-3a OO gauge

P-165stw-half-y-point-plus-250r-100-live-w-3a(conduit version)

Half Y point using 25cm radius curve, but compatible with trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, and can be built as either live or insulated frog. Smaller stone pattern similar to Wills OO stone setts. Radius is 25cm. Angle of point is approx 21deg. Distance between parallel tracks is very close to that between trainset R2 radius tracks (67mm). Requires track building skills.

Print off template

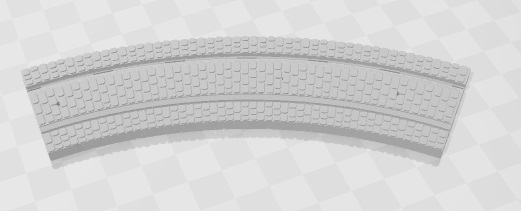

P-165stw-curve-tram-long-250r-w-3a

P-165stw-curve-tram-long-250r-plus-w-3a(conduit version)

Sections to make up 25cm radius curve, but compatible with trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail. Smaller stone pattern similar to Wills OO stone setts. Radius is 25cm. Angle of 1 section is 30deg. Distance between parallel tracks is very close to that between trainset R2 radius tracks.(67mm)longer version of 250mm radius curve with smaller stones. angle is 30 degrees.

Print off template

P-165stw-curve-tram-short-250r-w-3a OO gauge

P-165stw-curve-tram-short-250r-plus-w-1a(conduit version)


Sections to make up 25cm radius curve, but compatible with trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail. Smaller stone pattern similar to Wills OO stone setts. Radius is 25cm. Angle of 1 section is 10deg. Distance between parallel tracks is very close to that between trainset R2 radius tracks.(67mm)

Print off template

P-165stw-rh-loop-point-250r-100-live-1a

P-165stw-rh-loop-point-250r-plus-100-live-1a(conduit version)

Right hand point and curve with small stone surface, for start of passing loop. radius
is 250mm, angle of points is about 25 degrees. Results in parallel tracks 46mm apart.
Uses code 100 rail.

Print off template

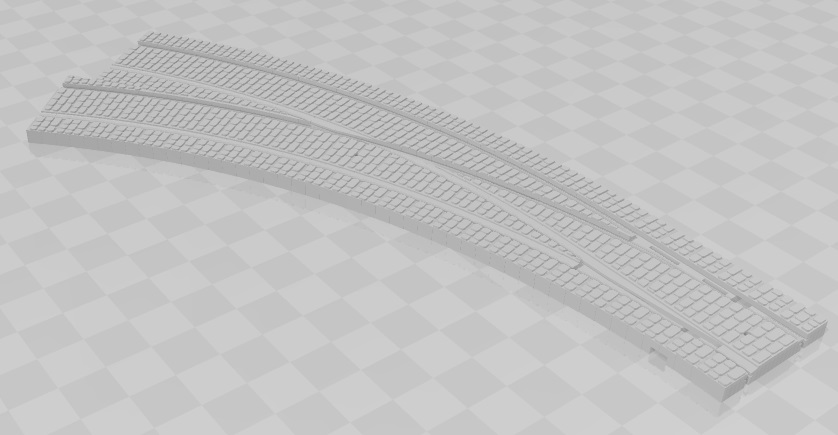

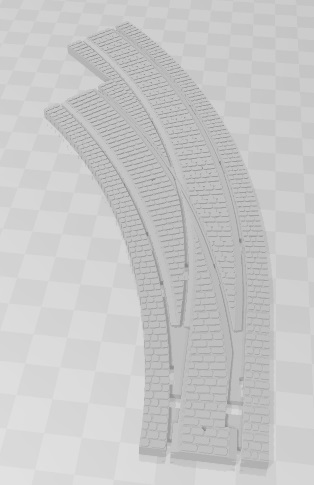

P-165stw-lh-loop-point-250r-100-live-1a

Left hand point and curve with small stone surface, for start of passing loop. radius
is 250mm, angle of points is about 25 degrees. Results in parallel tracks 46mm apart.
Uses code 100 rail.

Print off template

P-165stw-curve-tram-short-204r-w-1a

P-165stw-curve-tram-short-204r-plus-w-1a(conduit version)

204mm radius short(10 degrees) curve section with small stone surface. Works with 250mm radius to give double track tramway. fits code 100 rail.

Print off template

P-165stw-curve-tram-long-204r-w-1a

P-165stw-curve-tram-long-204r-plus-w-1a(conduit version)

204mm radius long(30 degrees) curve section with small stone surface. Works with 250mm radius to give double track tramway. fits code 100 rail.

Print off template

P-165stw-straight-tram-62-5-w-100-1b

P-165stw-straight-tram-62-5-plus-w-100-1b(conduit version)

62.5mm length of straight track with small stone surface. length fits in with 250mm radius points and curves(30 degree angle) . fits code 100 rail

Print off template

P-165stw-straight-tram-125-w-100-1b

P-165stw-straight-tram-125-plus-w-100-1b (conduit version)


125mm length of straight track with small stone surface. length fits in with 250mm radius points and curves(30 degree angle) . fits code 100 rail

Print off template

P-165stw-long-straight-track-100-w-3a

P-165stw-straight-tram-168-plus-w-100-1b (conduit version)

Longer straight sections with conduit using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail  Smaller stone pattern . Each section is 168mm long.

Print off template



Junction track sections

  Description Template

P-165stw-lh-junction-250r-204r-part1-1a

P-165stw-lh-junction-250r-204r-part1-plus-1a(conduit version)

OO/HO left hand junction point, outer track part(250mm radius), with conduit . For
full junction requires part 2. fits code 100 rail

Print off template

P-165stw-lh-junction-250r-204r-part2-1a

P-165stw-lh-junction-250r-204r-part2-plus-1a(conduit version)


OO/HO left hand junction point, inner track part(204mm radius), with or without conduit . For
full junction requires part 1. fits code 100 rail

Print off template
P-165stw-lh-junction-crossing-250r-part2-1a

p-165stw-lh-junction-crossing-250r-plus-part2-1a(conduit version)



alternate single track section to make single track junction with double track, radius 250mm, with and without conduit.Full junction requires part 1. fits code 100 rail

Print off template



P-165stw-rh-junction-250r-204r-part1-1a

P-165stw-rh-junction-250r-204r-part1-plus-1a(conduit version)

OO/HO right hand junction point, outer track part(250mm radius), with or without conduit . For full junction requires part 2.

Print off template

P-165stw-rh-junction-250r-204r-part2-1a

P-165stw-rh-junction-250r-204r-part2-plus-1a(conduit version)


OO/HO right hand junction point, inner track part(204mm radius), with conduit . For
full junction requires part 1. fits code 100 rail

Print off template
P-165stw-rh-junction-crossing-250r-part2-1a

p-165stw-rh-junction-crossing-250r-plus-part2-1a(conduit version)

alternate single track section to make single track junction with double track, tadius 250mm, with and without conduit.Full junction requires part 1. fits code 100 rail

Print off template

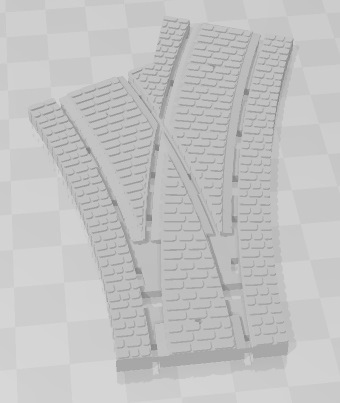

P-165stw-y-junction-250r-204r-part1-1a

P-165stw-y-junction-250r-204r-part1-plus-1a(conduit version)

OO/HO Y junction point,right hand inner part(204mm radius)and left hand outer(250mm
radius), with or without conduit . For full junction requires parts 2 and 3. fits code 100 rail

Print off template

P-165stw-y-junction-250r-204r-part3-1a

P-165stw-y-junction-250r-204r-part3-plus-1a(conduit version)

OO/HO Y junction point,central section outer radius curves(250mm radius), with or without  conduit
. For full junction requires parts 1 and 2. fits code 100 rail

Print off template

P-165stw-y-junction-250r-204r-part2-1a

P-165stw-y-junction-250r-204r-part2-plus-1a(conduit version)

OO/HO Y junction point,left hand inner part(204mm radius)and right hand outer(250mm
radius), with or without conduit . For full junction requires parts 1 and 3. fits code 100 rail

Print off template

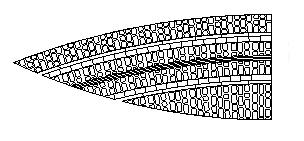

P-165stw-y-junction-curve-250r-part1-1a

P-165stw-y-junction-curve-250r-part1-plus-1a(conduit version)

simple curve section as alternate piece to the y point in the y double junction set. replaces P-165stw-y-junction-250r-204r-part1

joins onto P-165stw-y-junction-250r-204r-part3



Print off template

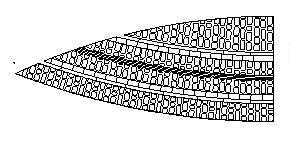

P-165stw-y-junction-curve-250r-part2-1a

P-165stw-y-junction-curve-250r-part2-plus-1a(conduit version)

simple curve section as alternate piece to the y point in the y double junction set. replaces P-165stw-y-junction-250r-204r-part2

joins onto P-165stw-y-junction-250r-204r-part3



Print off template

P-165stw-crossing-junction-250r-204r-plus-1a(conduit version)

OO/HO double track tram crossing with or without conduit to go with junction track junction
points. Track spacing for 250mm and 204mm radius curves.

Fits code 100 rail

Print off template

P-165stw-d-straight-junction-250r-204r-1a



P-165stw-d-straight-junction-250r-204r-plus-1a(conduit version)

double track section to fit double junction. track spacing for 250mm and 204mm radius
curves. fits code 100 rail


Print off template

P-165stw-rh-crossover-part1-250r-100-live-1a

P-165stw-rh-crossover-plus-part1-250r-100-live-1a(conduit version)

left hand cross over point, small stone surface, radius 250mm, fit code 100 rail,

require two to make crossover

This section is different to the part 1 section for the junction, as curve is set for reverse curve of crossover.

Print off template

P-165stw-lh-crossover-part1-250r-100-live-1a

P-165stw-lh-crossover-plus-part1-250r-100-live-1a(conduit version)


right hand cross over point, small stone surface, radius 250mm, fit code 100 rail

 require two to make crossover

This section is different to the part 1 section for the junction, as curve is set for reverse curve of crossover.


Print off template

P-165stw-lh-cross-straight-250r-100-live-3a

P-165stw-lh-cross-straight-250r-plus-100-live-3a(Conduit version)

additional straight sections to fit the left hand tram track crossover with small stone surface  fits code 100 rail. Need two of these for crossover.


Print off template

P-165stw-rh-cross-straight-250r-100-live-3a

P-165stw-rh-cross-straight-250r-plus-100-live-3a(Conduit version)

additional straight sections to fit the right hand tram track crossover with small stone surface  fits code 100 rail. Need two of these for crossover.



Print off template











Wedges and topping sheets to fit between track sections

P-165stw-rh-loop-wedge-250r-100-live-1a

wedge for P-165stw-rh-loop-point-250r-100-live-1a


P-165stw-lh-loop-wedge-250r-100-live-1a

wedge for P-165stw-lh-loop-wedge-250r-100-live-1a


P-165stw-curve-wedge-short-250-204r-w-1a

short curved wedge to fit between 250mm and 204mm radius curves

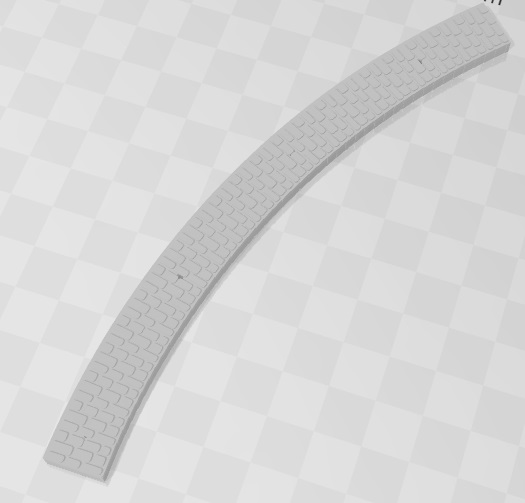

P-165stw-curve-wedge-long-250-204r-w-1a

long curved wedge to fit between 250mm and 204mm radius curves


P-165stw-straight-wedge-125-w-250-204r-100-1b

long(125mm) wedge to fit between double track tramways, for 250mm and 204mm radius
curve compatibility.


P-165stw-straight-wedge-62-5-w-250-204r-100-1b

short(65.5mm) wedge to fit between double track tramways, for 250mm and 204mm radius curve compatibility.


P-165stw-straight-wedge-168-w-250-204r-100-1b

wedge with small stone surface, to fit between parallel tracks corresponding to 204mm and 250mm radius curves
