OO Gauge Track

These track panels are designed to fit Peco code 100 and in some cases code 75 rail. It should also be possible to fit code 83 rail instead of code 75 rail.
recommended for indoor use only, as plastic is not fully water proof

Illustrations and templates  are based on standard versions, finescale versions have virtually the same detailed surface.



Purely tram track(smaller radius) now is in own section

Link to :

          OO Gauge plain surface track

       OO Gauge tram track

       OO Gauge wagon turntables

       OO Gauge small turntables

       OO and OO9 mixed gauge track

       OO and 12mm mixed gauge

       OO Board Joining Track

       >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>  back to Track Menu page

Inserts for points and crossings (now with integrated base)

  Description Template

 P-165stw-point-insert-rh RIGHT SMALL STONE

tramway insert designed to fit into Peco Setrack Right hand point. Smaller stone pattern, close in size to Wills plastic, so ideal for various scales. Just clips in place, but preferable to fix permanently, either with glue or pin. All pieces now joined, so need to separate them before fitting.

Now includes side pieces and base which separating before assembly.

Template same as full panel

Print off template

P-165stw-point-insert-lh LEFT SMALL STONE

tramway insert designed to fit into Peco Setrack Left hand point. Smaller stone pattern, close in size to Wills plastic, so ideal for various scales. Just clips in place, but preferable to fix permanently, either with glue or pin. Note parts now come joined so need separating before fitting. ....

Now includes side pieces and base which separating before assembly.

Template same as full panel

Print off template

P-165stw-y-point-insert-1a

dockyard/tramway insert for Peco Setrack Y point with small stone surface

Now includes side pieces and base which separating before assembly.

Template same as full panel

Print off template

standard (code 100 rail)

P-165stw-small-y-point-insert-1a

finescale (code 75 rail)

P-165stw-small-y-point-insert-75

small stone surface insert for Peco small Y point OO/HO  . Ideal for dockyards, industrial areas, goods yards, tramways, level crossings.

Now includes side pieces and base which separating before assembly.

Print off template

standard(code 100 rail)

P-165stw-short-crossing-w-2a

finescale(code 75 rail)

P-165stw-short-crossing-75

small stone surfaced inserts for small Peco OO/HO railcrossing. Ideal for dockyards, industrial areas, goods yards, tramways, level crossings

Now includes side pieces and base which separating before assembly.

Print off template

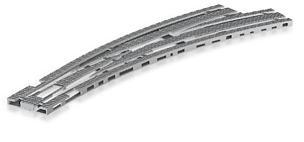

P-165stw-curved-2r-point-insert-plus-base-lh-1a

small stone wrap around inserts for Setrack 2R curved point left hand.



Includes side pieces and base which separating before assembly.
Print off template
P-165stw-curved-2r-point-insert-plus-base-rh-1a

small stone wrap around inserts for Setrack 2R curved point right hand.



Includes side pieces and base which separating before assembly.
Print off template
standard(code 100 rail)

P-165stw-small-rh-point-plus-base-1a

finescale(code 75 rail)

P-165stw-75-small-rh-point-plus-base-1a

wrap around inlay for Peco small radius(2ft) right hand point, with small stone surface. Inlays need separating from main wrap around panel. Some small amount of trimming might be needed.

Print off template
standard(code 100 rail)

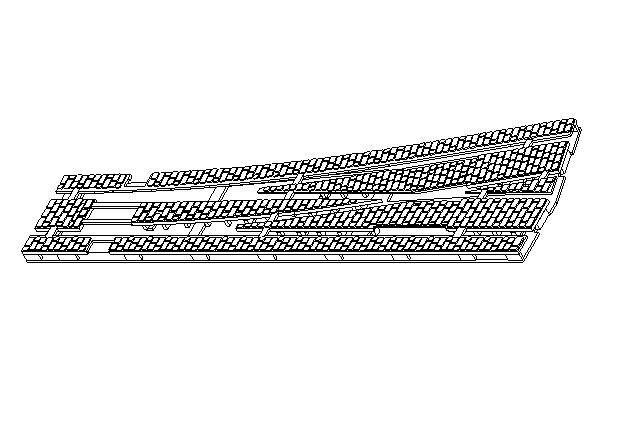

P-165stw-small-lh-point-plus-base-1a

finescale(code 75 rail)

P-165stw-75-small-lh-point-plus-base-1a

wrap around inlay for Peco small radius(2ft) left hand point, with small stone surface. Inlays need separating from main wrap around panel. Some small amount of trimming might be needed.

Print off template
standard(code 100 rail)

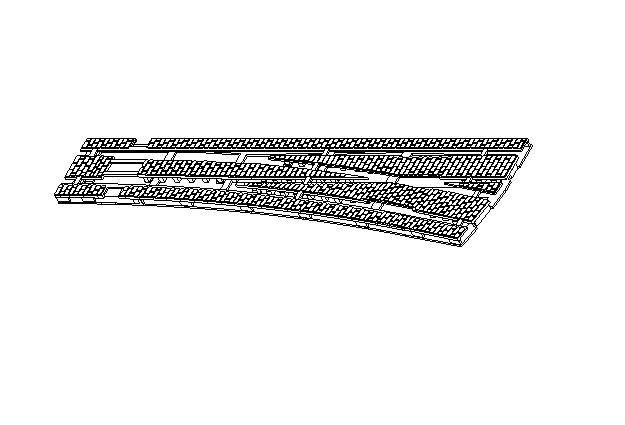

P-165stw-medium-rh-point-plus-base-1a

finescale(code 75 rail)

P-165stw-75-medium-rh-point-plus-base-1a

wrap around inlay for Peco medium radius(3ft) right hand point, with small stone surface. Inlays need separating from main wrap around panel. Some small amount of trimming might be needed.

Print off template
standard(code 100 rail)

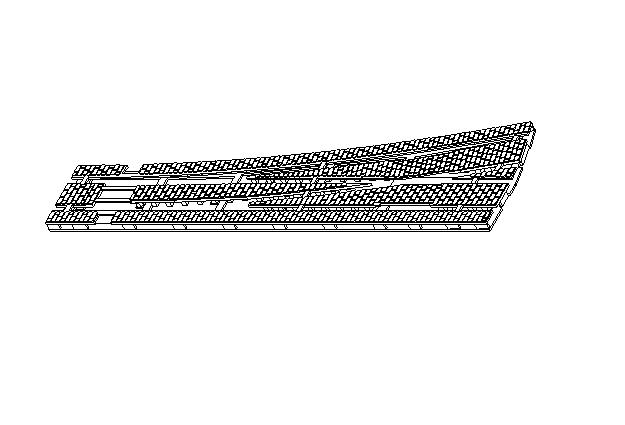

P-165stw-medium-lh-point-plus-base-1a

finescale(code 75 rail)

P-165stw-75-medium-lh-point-plus-base-1a

wrap around inlay for Peco medium radius(3ft) left hand point, with small stone surface, and code 100 rail version. Inlays need separating from main wrap around panel. Some small amount of trimming might be needed

Print off template
standard(code 100 rail)

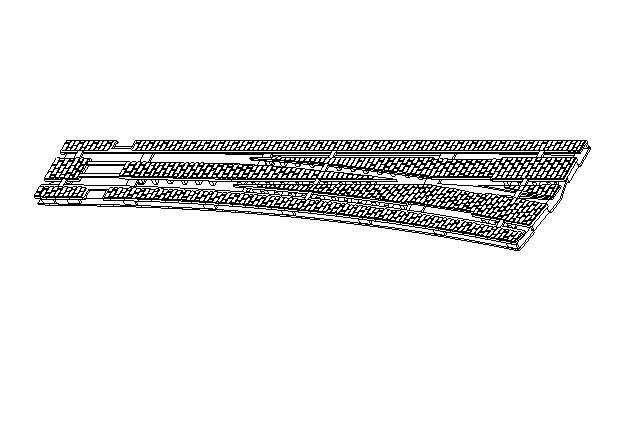

P-165stw-large-rh-point-plus-base-1a

finescale(code 75 rail)

P-165stw-75-large-rh-point-plus-base-1a

wrap around inlay for Peco large radius(4ft) right hand point, with small stone surface. Inlays need separating from main wrap around panel. Some small amount of trimming might be needed.

Print off template
standard(code 100 rail)

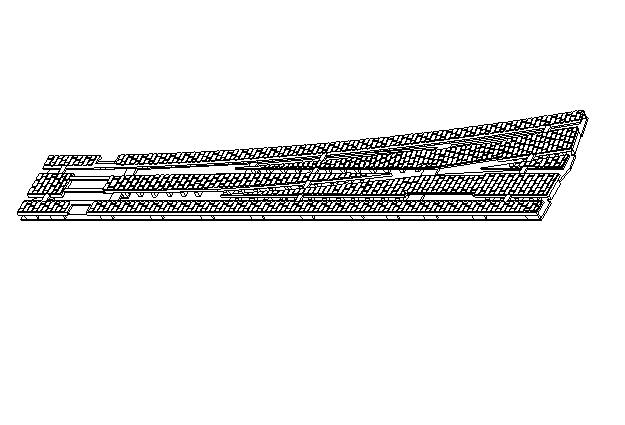

P-165stw-large-lh-point-plus-base-1a

finescale(code 75 rail)

P-165stw-large-lh-point-plus-base-1a

wrap around inlay for Peco large radius(4ft) left hand point, with small stone surface. Inlays need separating from main wrap around panel. Some small amount of trimming might be needed.

Print off template

Full track sections for code 100 rail unless otherwise stated

  Description Template

P-165stw-point-RIGHT-100-w-live-9a

Right hand point using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, and can be built as either live or insulated frog. Smaller stone pattern. Radius is approximately 17.25in(438mm). Angle of point is 22.5deg. Requires track building skills.

Print off template



P-165stw-point-LEFT-100-w-live-9a

Left hand point using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, and can be built as either live or insulated frog. Smaller stone pattern . Radius is approximately 17.25in(438mm). Angle of point is 22.5deg. Requires track building skills.

Print off template

P-165stw-point-half-y-100-live-w-3a

Half Y point using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, and can be built as either live or insulated frog. Smaller stone pattern. Radius is approximately 17.25in(438mm). Angle of point is approx 15deg. Requires track building skills
Print off template

P-165stw-y-point-100-live-w-3a

Y point using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, and can be built as either live or insulated frog. Smaller stone pattern . Radius is approximately 33.8in(859mm). Angle of point is 11.25deg. Requires track building skills
Print off template

P-165stw-crossing-22-5-100-w-1a

diamond crossing 22.5 degrees. matches setrack. live frog, but with pieces to change to insulated frog.
Print off template

P-165stw-crossing-45-100-w-1a

45 degree crossing, code 100 rail to be fitted
Print off template

 P-165stw-long-curved-r2-track-100-w-2a

Curved track section to match R2 points using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, smaller stone pattern similar to Wills OO stone setts. Radius is approximately 17.25in(438mm). Angle of section is 22.5deg
Print off template

P-165stw-short-curved-r2-track-100-w-3a

Curved track sections to match R2 points using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail, smaller stone pattern similar to Wills OO stone setts. Radius is approximately 17.25in(438mm). Angle of 1 pieces is 5.625deg.
Print off template

P-165stw-long-curved-y-track-100-w-3a

longer curved section to match Y point using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail. Smaller stone pattern similar to Wills OO stone setts. Radius is approximately 33.8in(859mm). Angle of section is 11.25deg.longer section of curve for Y point with smaller stones
Print off template

P-165stw-short-curved-y-track-100-w-3b

curved sections to match Y point using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail. Smaller stone pattern similar to Wills OO stone setts. Radius is approximately 33.8in(859mm). Angle of 1 sections is 2.81deg.
Print off template

standard(code 100 rail)

P-165stw-long-straight-track-100-w-3a

finescale(code 75 rail)

P-165stw-long-straight-track-75

Longer straight sections using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail or code 75 as appropriate. Smaller stone pattern . Each section is 168mm long.

Print off template

P-165stw-short-straight-track-100-w-3a OO

Short straight section using same geometry as trainset track such as Peco OO/HO and Hornby OO. Require to cut and fit code 100 rail. Smaller stone pattern similar to Wills OO stone setts. Each section is 42mm long, so 4 sections are same length as LH and RH 2R points
Print off template
standard(code 100 rail)

P-165stw-curved-610r-track-12d-100-w-1a

finescale(code 75 rail)

P-165stw-curved-610r-track-12d-75-w-1a

2ft curve with small stone surface, 12 degree angle. fit code 100 rail.

Print off template
standard(code 100 rail)

P-165stw-curved-914r-track-12d-100-w-1a

finescale(code 75 rail)

P-165stw-curved-914r-track-12d-75-w-1a

3ft curve with small stone surface, 12 degree angle. fit code 100 rail.

Print off template
standard(code 100 rail)

P-165stw-curved-1219r-track-12d-100-w-1a

finescale(code 75 rail)

P-165stw-curved-1219r-track-12d-75-w-1a

4ft curve with small stone surface, 12 degree angle. fit code 100 rail.

Print off template



P-165stw-flexi-track-100-w-x24-1a


24 pieces of small stone section top make flexi inset track. fit code 100 rail.each section is 7mm long.



P-165stw-flexi-track-100-w-x48-1a

48 pieces of small stone section top make flexi inset track. fit code 100 rail.each section is 7mm long.






Wedges and topping sheets to fit between track sections

P-165w-2R-point-wedge-inner-LH-w-1a

wedge to fit inside curve of standard 2R left hand point
P-165w-2R-point-topping-inner-LH-w-1a

P-165w-2R-point-wedge-outer-LH-w-1a

wedge to fit outside 2R curve, to match standard left hand point, with small stone design
P-165w-2R-point-topping-outer-LH-w-1a

P-165w-2R-point-wedge-outer-RH-w-1a

wedge to fit outside 2R curve to match right hand point, small stone pattern
P-165w-2R-point-topping-outer-RH-w-1a

P-165w-2R-point-wedge-inner-RH-w-1a

designed to fit inside curved side of standard 2R right hand point, small stone pattern.
P-165w-2R-point-topping-inner-RH-w-1a

P-165w-straight-long-wedge-w-1a

Straight infill, same size as straight track section, correct width for parallel tracks using standard 2R curves and points.Small stone design
P-165w-topping-sheet-w-1a

 P-165stw-Y-point-wedge-inner-w-1a

small stoned surfaced curved wedge to fit between curves coming from Setrack Y point
P-165stw-Y-point-topping-inner-w-1a

P-165stw-Y-point-wedge-inner-LH-w-1a

LH inside Y curve wedge section with small stone surface. Suitable for Peco Setract Y point, radius 859mm.
P-165stw-Y-point-topping-inner-LH-w-1a

P-165stw-Y-point-wedge-outer-LH-w-1a

LH outside Y curve wedge section with small stone surface. Suitable for Peco Setract Y point, radius 859mm.
P-165stw-Y-point-topping-outer-LH-w-1a

P-165stw-Y-point-wedge-outer-RH-w-1a

RH outside Y curve wedge section with small stone surface. Suitable for Peco Setract Y point, radius 859mm.
P-165stw-Y-point-topping-outer-RH-w-1a

P-165stw-Y-point-wedge-inner-RH-w-1a

RH inside Y curve wedge section with small stone surface. Suitable for Peco Setract Y point, radius 859mm
P-165stw-Y-point-topping-inner-RH-w-1a
