3D Printed Provender / Trader Goods Sheds

One of the classic designs to come from Exmouth concrete works. Introduced in 1951 as a simple shed to replace many of the out of date and in many cases poor condition sheds used to store and transfer small goods to and from rail to road.
Two main versions small and medium which could be extended lengthways or doubled up width wise.

Small shed was 13ft 6in wide by 20ft long

Medium Shed was 20ft by 20ft

Both could be lengthened in multiples of 6ft 6in.

Sheds could also be doubled up width wise, with a 3ft connecting section. These were classified as large sheds.

Double small sheds started at 30ft by 20 ft

Medium double sheds started at 43ft by 20ft

A combined small and medium shed started at 36ft 6in by 20ft.

L shaped sheds could be created with different lengths of individual shed.

Using the modules a variety of sheds can be to fit location with windows or plain sheets inserted.

Doors can be detached and repositioned open or closed





Only a selection of complete sheds below. These were done to test various modular designs .

 Virtually any shed design can be supplied in any scale. Just contact with requirements

---------------------------------------------------------

All 3D printed designs by Simon Dawson (Rue d'Étropal) , currently produced to order by Shapeways. Just follow links to Shapeways pages.



===============================

Link to:

            3D printed buildings

            3D printed locomotives

            3D printed wagons

            3D printed track and accessories



>>>>>>>>>>>>>>>>>>>>>> back to 3D Printing Menu



Description Model Scales

Small Provender / Trader Goods Sheds

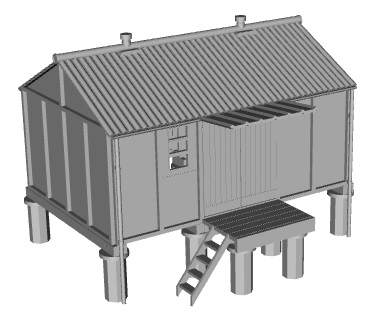

small provender /trader goods shed
medium provender /trader goods shed
Double medium provender /trader goods shed

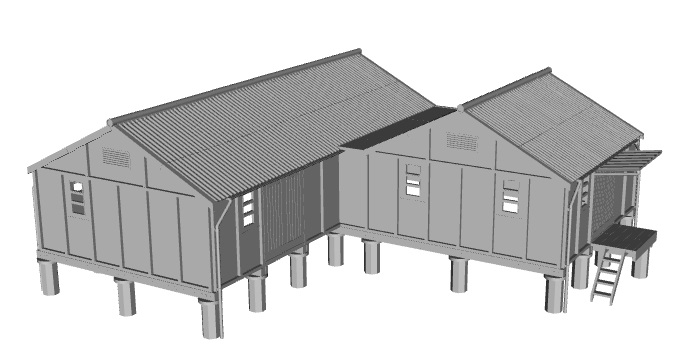

Double medium L shaped provender /trader goods shed

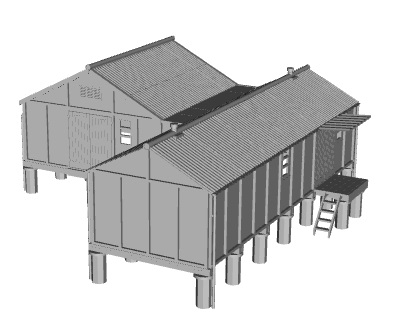

Double small/medium L shaped provender /trader goods shed

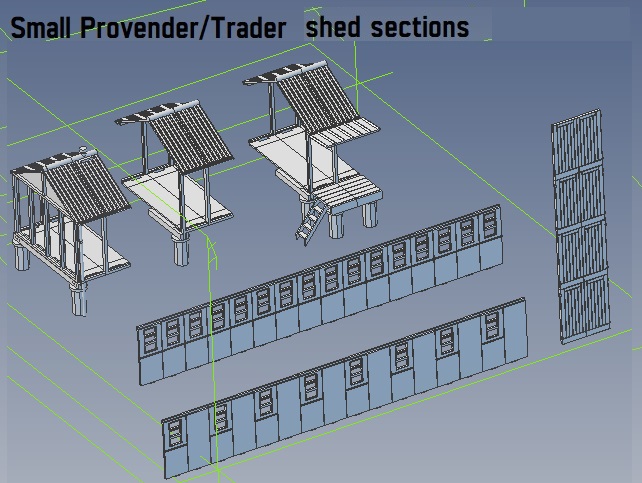

modules single
end

middle



middle section  with platform




end

middle



middle section  with platform






window section inserts

window and plain section inserts



door section inserts

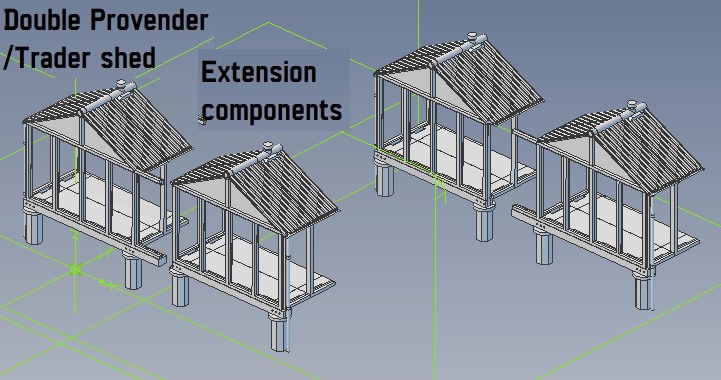

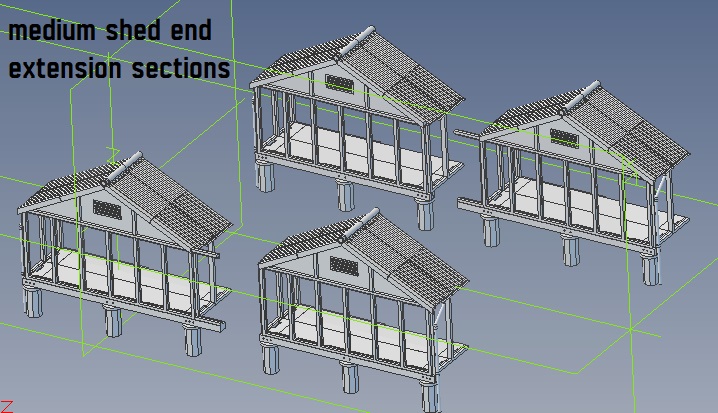

modules to extend to double shed
end right extension with connecting section

end left extension

end right extension

end left extension with connecting section


end right extension with connecting section

end left extension

end right extension

end left extension with connecting section



======================================

====================================================

Currently adding links to all my designs, all other designs please go to my Shapeways e-shop.
