Bulleid Q1 loco variations(fictional but plausible)

 Some alternative locos based on the Q1, using standard parts, as if Bulleid rather than Riddles designed the Austerities and BR standards..



Based on 3 types of boiler (A, B and C), and a fourth with shortened front running plate (D) but boiler same as C.

Type A is same as one actually fitted to Q1.







  Tank locos

Models will be for each boiler type, with alternative rear ends

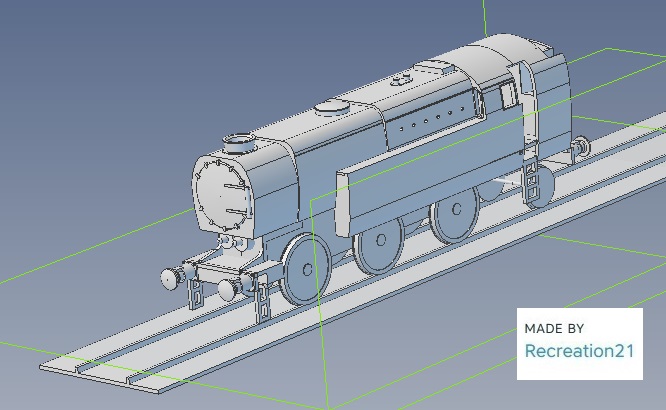

0-6-2T

Boiler type A

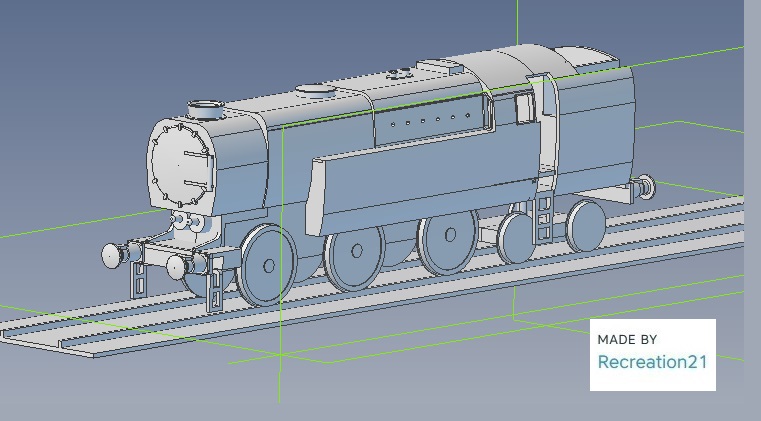

0-6-4T

Boiler type A

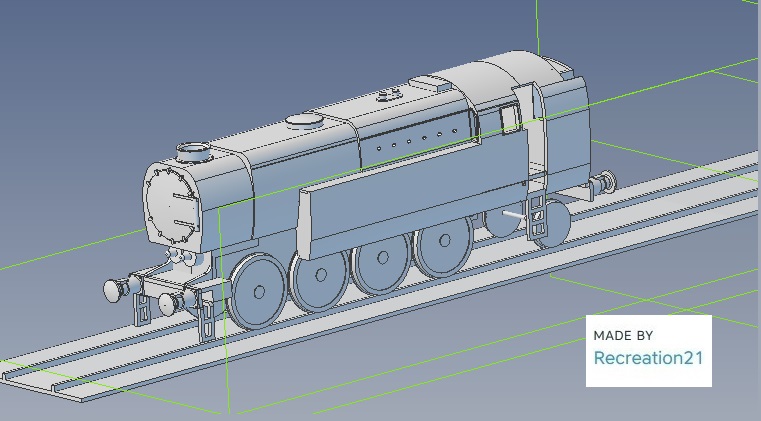

0-8-2T

Boiler type A



0-6-4T

Boiler type A

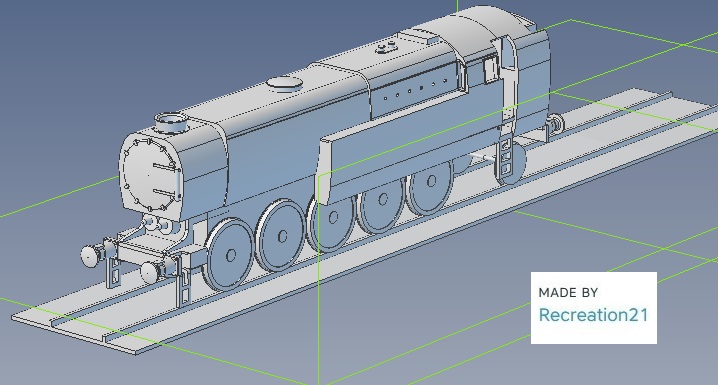

0-10-2T

Boiler type D

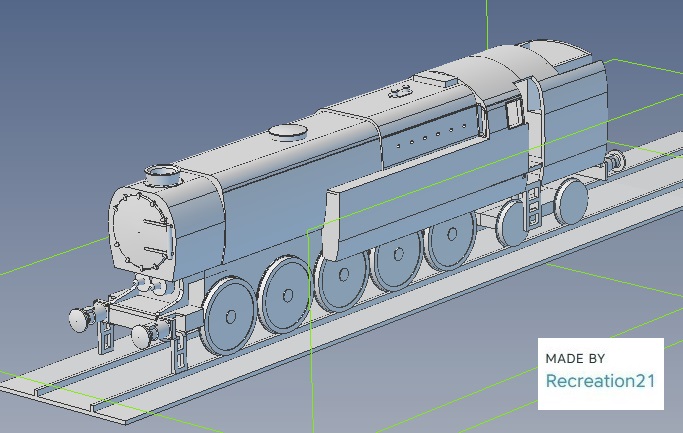

0-10-4T

Boiler type D

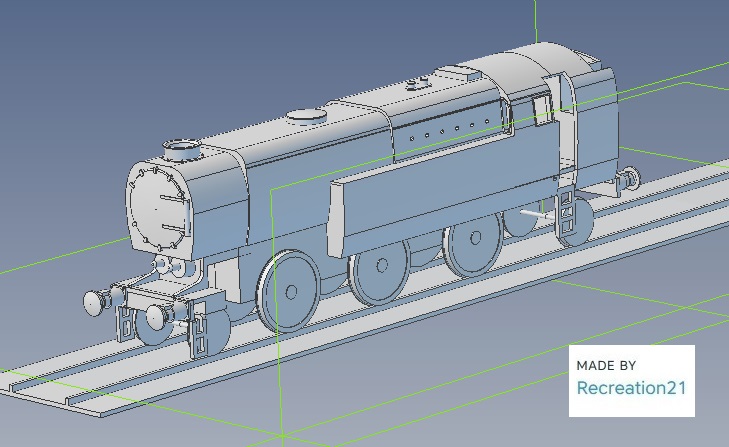

2-6-2T

Boiler type B

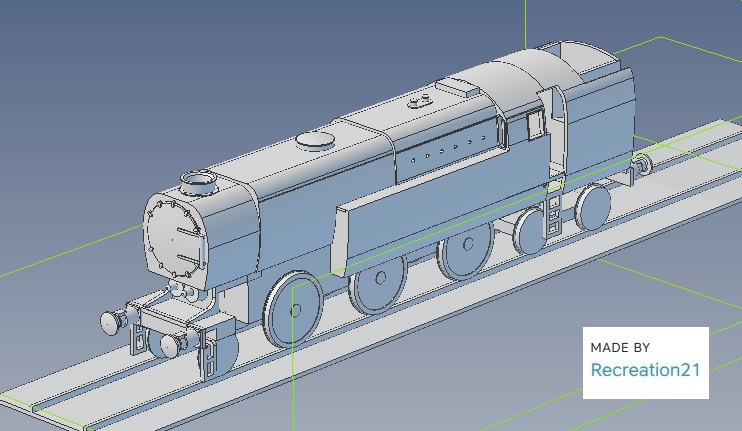

2-6-4T

Boiler type B

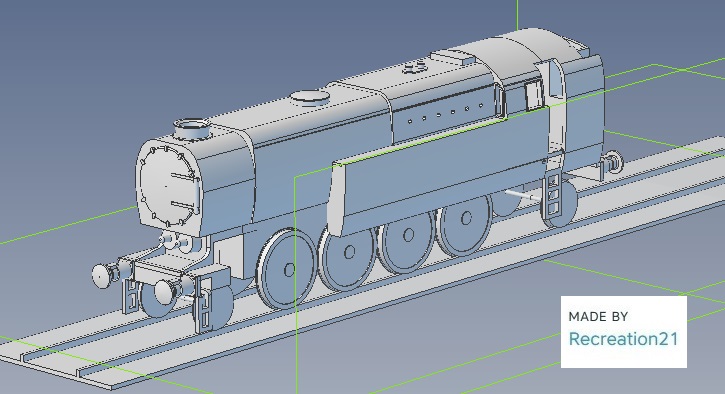

2-8-2T

Boiler type B

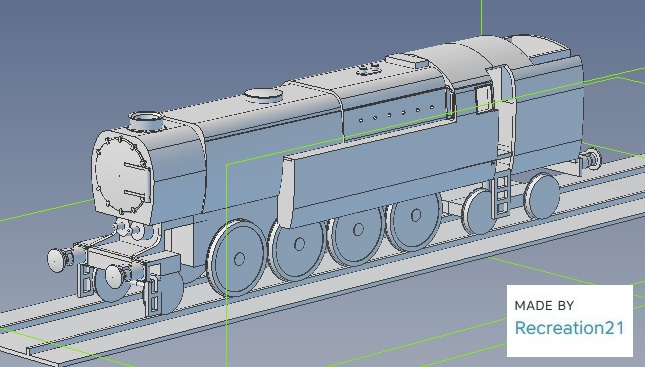

2-8-4T

Boiler type B

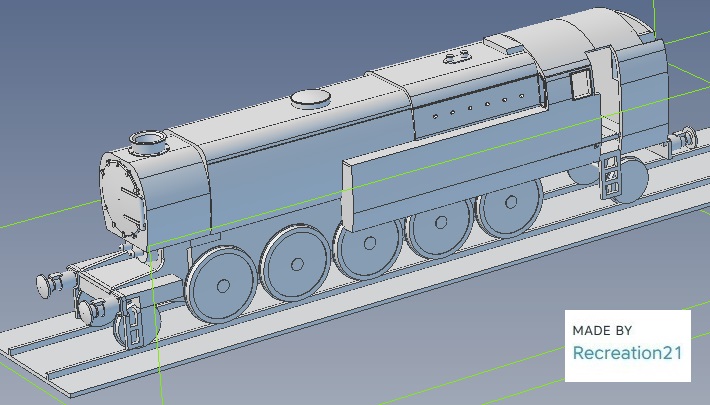

 2-10-2T

Boiler type C

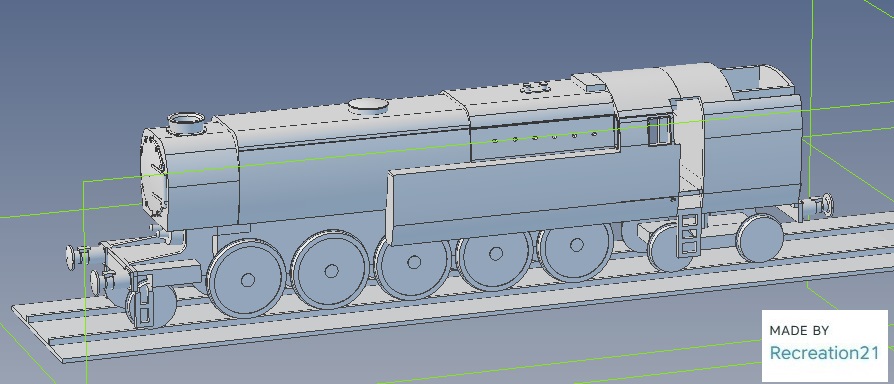

2-10-4T

Boiler type C

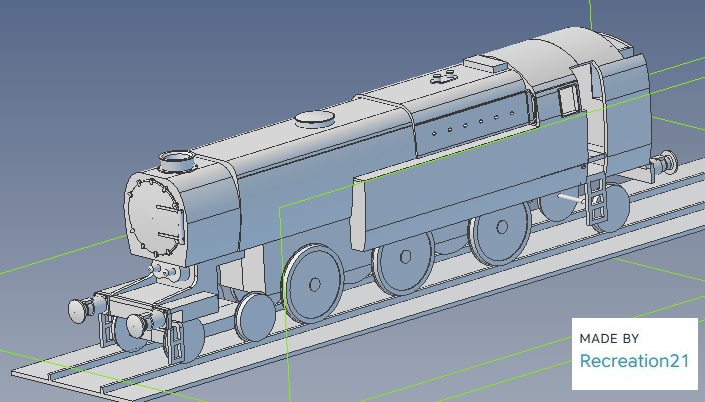

4-6-2T

Boiler type C

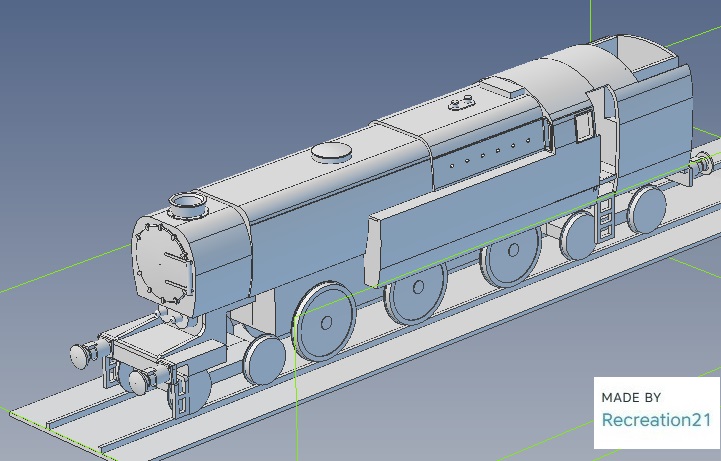

4-6-4T

Boiler type C

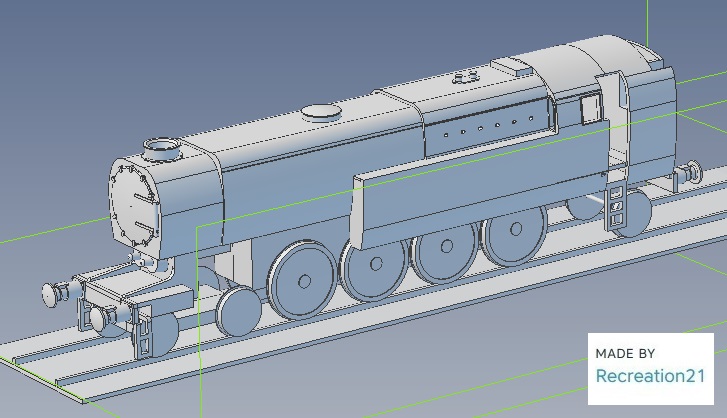

4-8-2T

Boiler type C

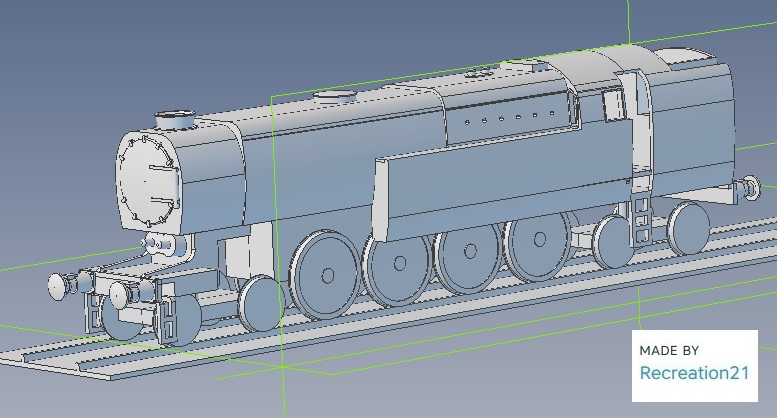

4-8-4T

Boiler type C

  Tank locos with Air Smoothing Body

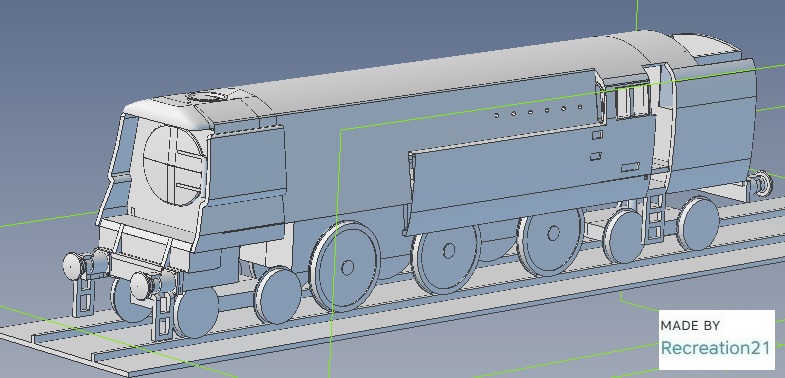

4-6-4T with air smoothing body

Boiler type C-AS

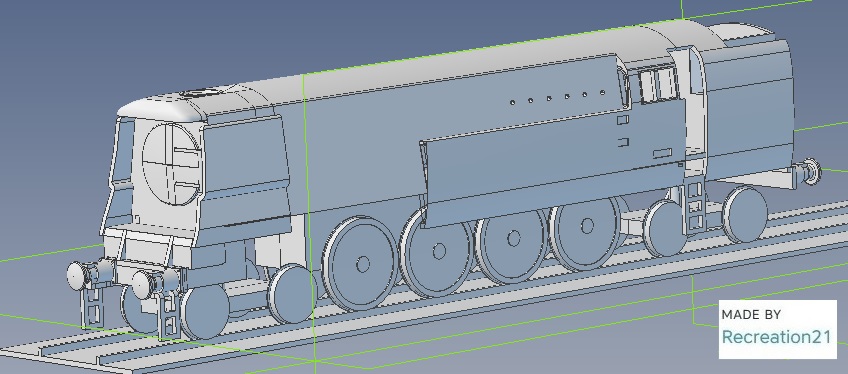

4-8-4T with air smoothing body

Boiler type C-AS

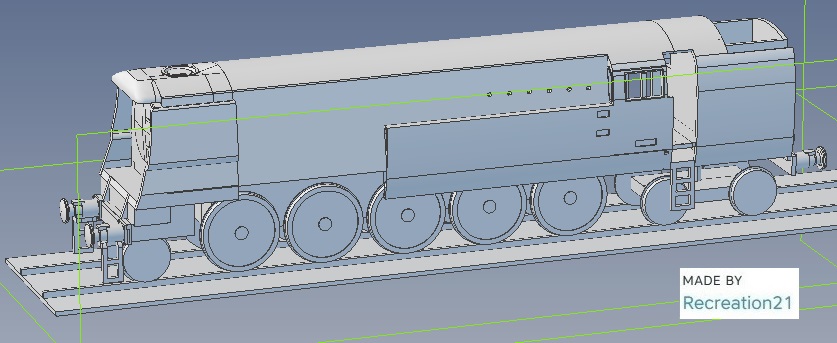

2-10-4T with air smoothing body

Boiler type C-AS



  Tender locos

4 body types cover all 8 versions, with Q1 6 wheel type tender or longer LNER/Austerity 8 wheel type tender

2-6-0

Boiler type B

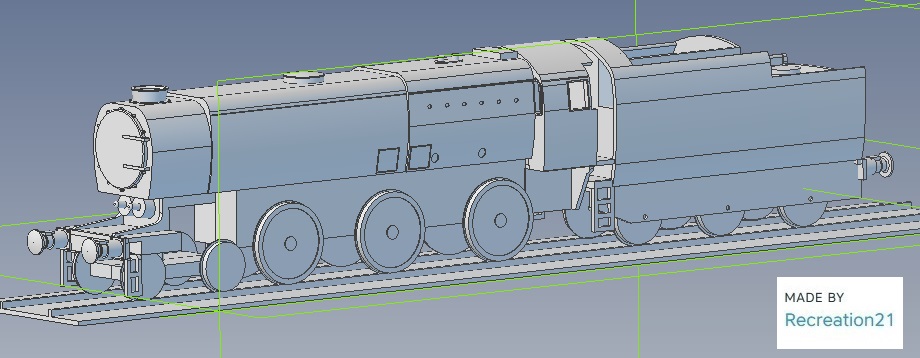

4-6-0 (short tender)

Boiler type C

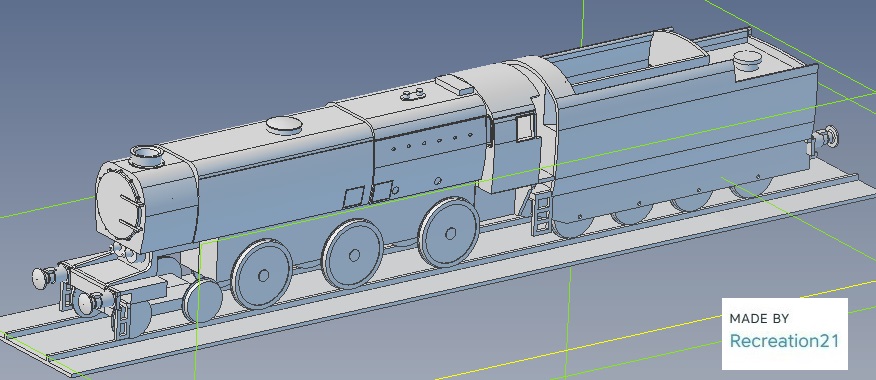

4-6-0 (long  tender)

Boiler type C

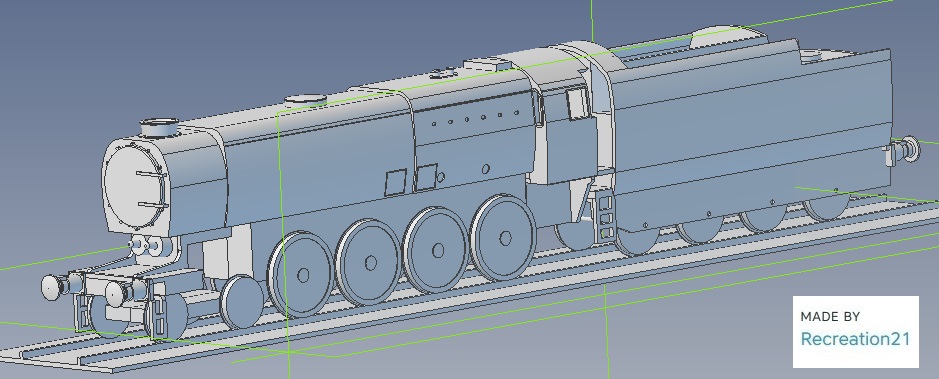

4-8-0

Boiler type C

2-8-0

Boiler type B

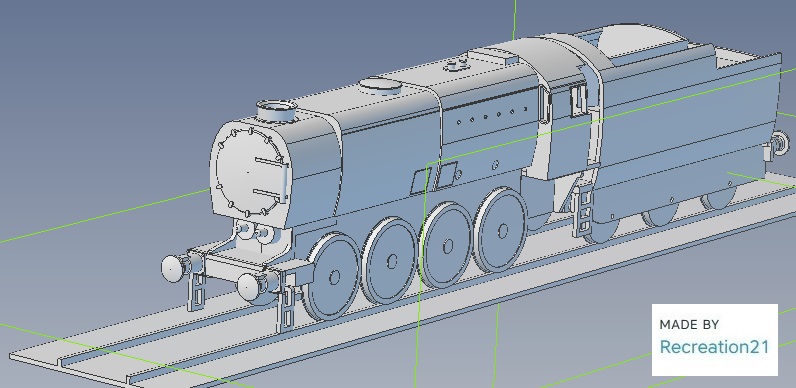

0-8-0

Boiler type A

2-10-0

Boiler type C

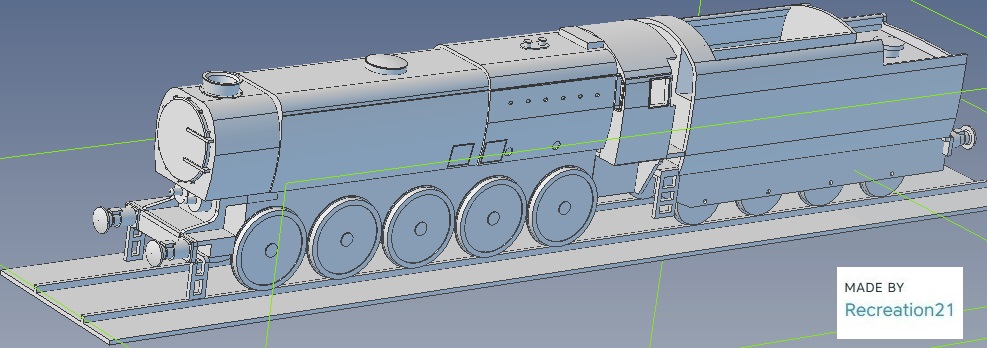

0-10-0

Boiler type D

    Standard short 6 Wheel Tender
Long 8 wheel Tender

Pictures are just for reference, not of specific scaled model. Models will be for bodies only. Chassis has to be fitted.

---------------------------------------------------------

All 3D printed designs by Simon Dawson (Rue d'Étropal) , currently produced to order by Shapeways. Just follow links to Shapeways pages.



===============================
